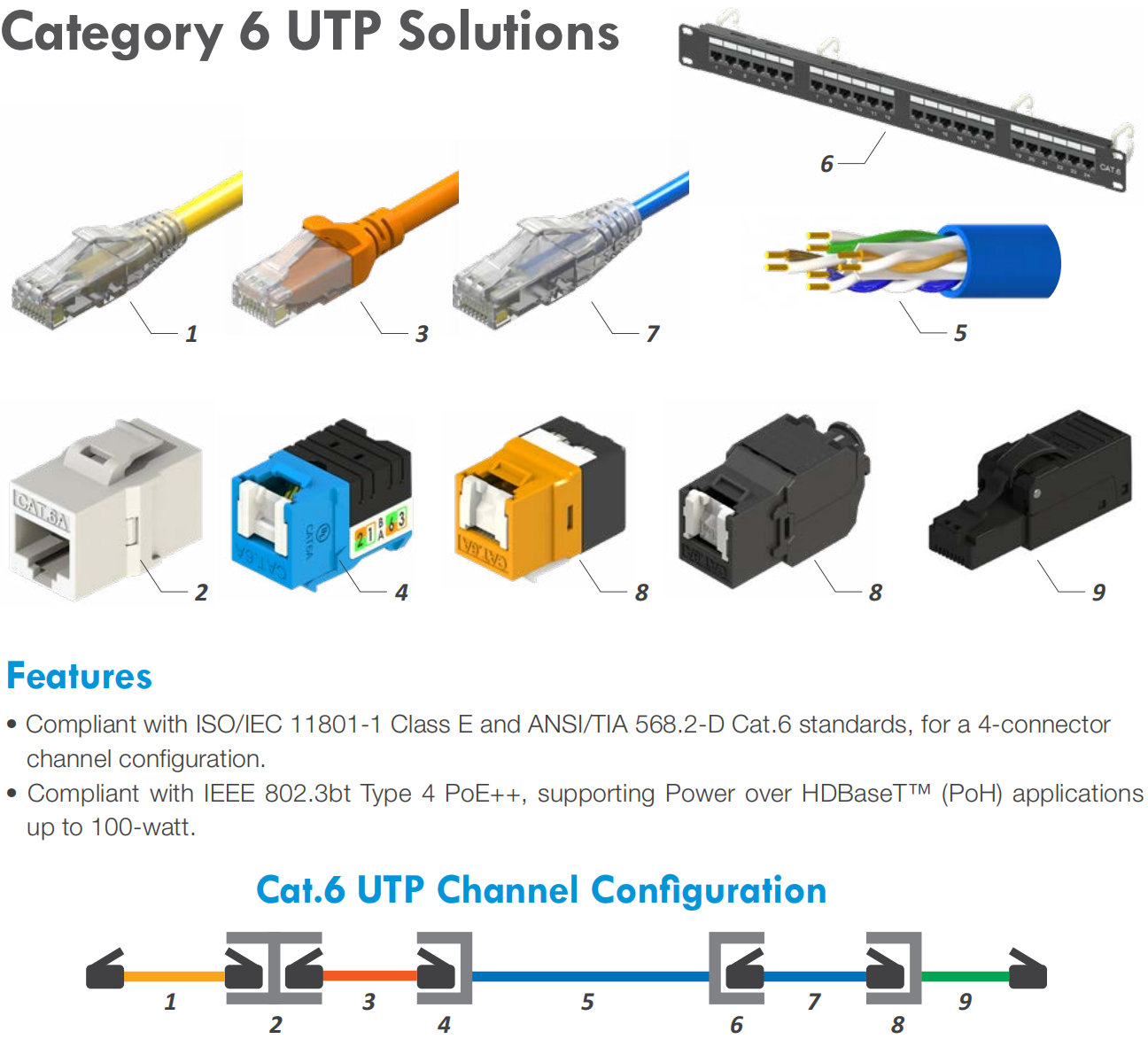

Linkwylan CAT6 UTP Cabling Solutions
Linkwylan Cat6 UTP (Unshielded Twisted Pair) Cabling Solutions deliver cost-effective 1Gbps Ethernet performance over distances up to 100 meters.
Designed for enterprise networks, data centers, and structured cabling environments, this solution provides reliable, high-speed connectivity with a 250MHz bandwidth, making it an ideal choice for Gigabit Ethernet applications in both commercial and residential settings.
The solution complies with ISO/IEC 11801 and ANSI/TIA-568.2-D international standards, with all components rigorously tested to ensure end-to-end performance and reliability
Category 6 (Cat 6) is the Gigabit Ethernet cable standard defined by the Telecommunications Industry Association (TIA) and International Organization for Standardization (ISO).
Cat 6 is designed to support data rates of up to 1Gbps (Gigabits per second) over short distances, making it an ideal choice for high-speed networking applications.
Gigabit Ethernet over 100 meters with 250MHz bandwidth

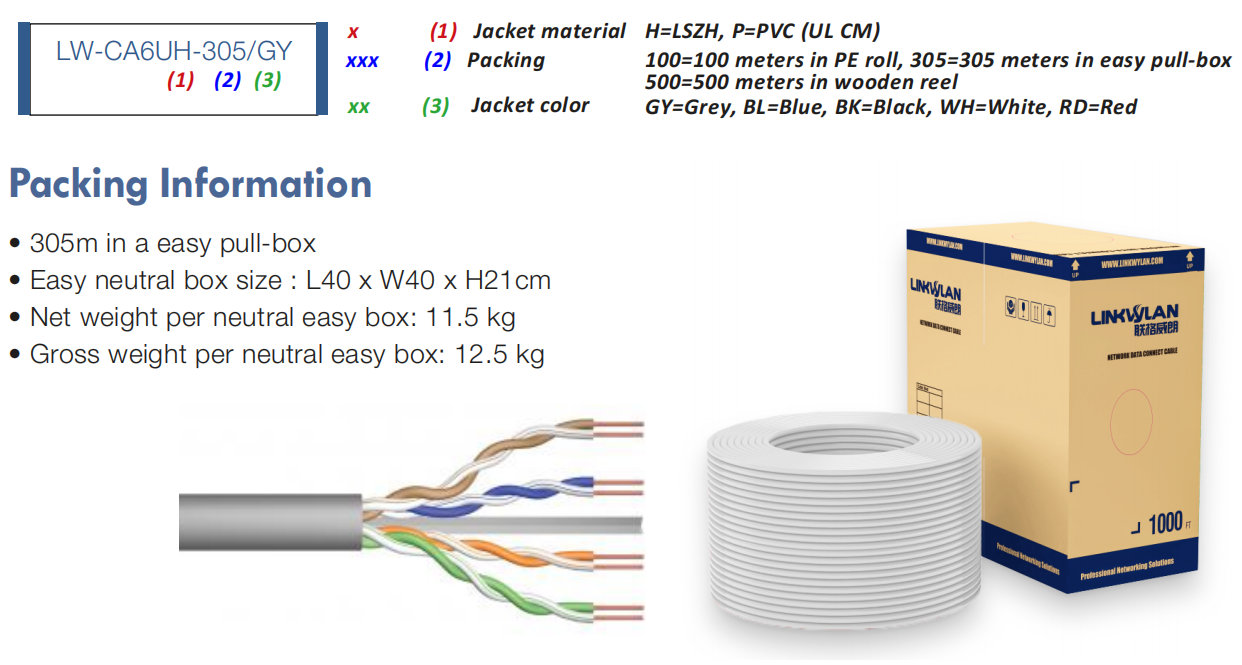

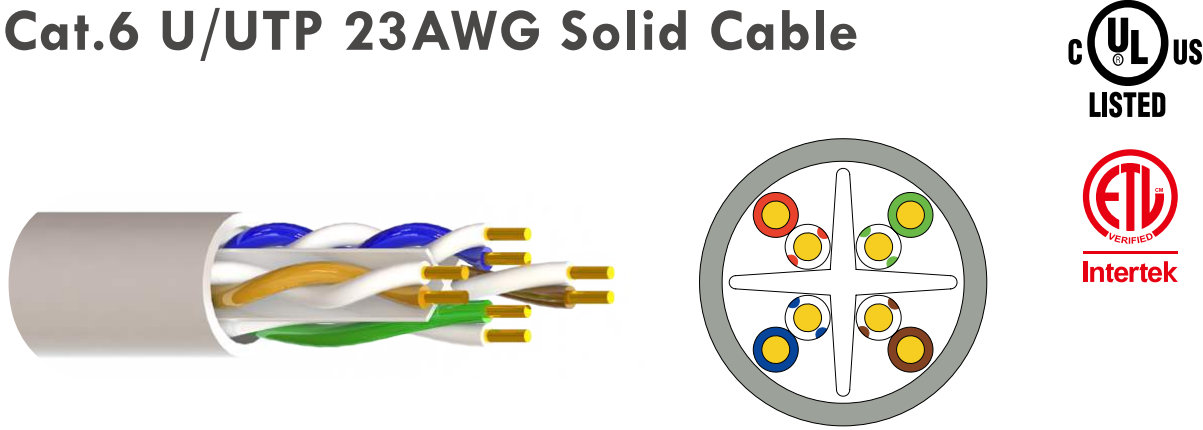

Cat6 UTP Installation Cable
The foundation of any structured cabling system, Linkwylan Cat6 UTP installation cable features 23AWG solid bare copper conductors for superior signal transmission:
| Specification | Technical Details |
|---|---|
| Data Rate | Up to 1Gbps |
| Bandwidth | 250MHz |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Conductor | 23AWG Solid Bare Copper |
| Construction | 4-pair twisted pair with central cross separator |
| Jacket Material | PVC or LSZH (Low Smoke Zero Halogen) |
| Standards | ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50173 |
| Testing | FLUKE Cat.6 Class E 90m Permanent Link Test |
| Standard Packaging | 305m/box, 500m/wooden spool |
Key Features:
- Central Cross Separator: Maintains pair spacing, reducing crosstalk and ensuring stable signal integrity
- Pure Oxygen-Free Copper Conductors: Low attenuation for reliable Gigabit transmission
- Fluke Performance Verified: Factory-tested to meet Cat.6 Class E standards
- Multiple Color Options: Gray, Blue, and custom colors available

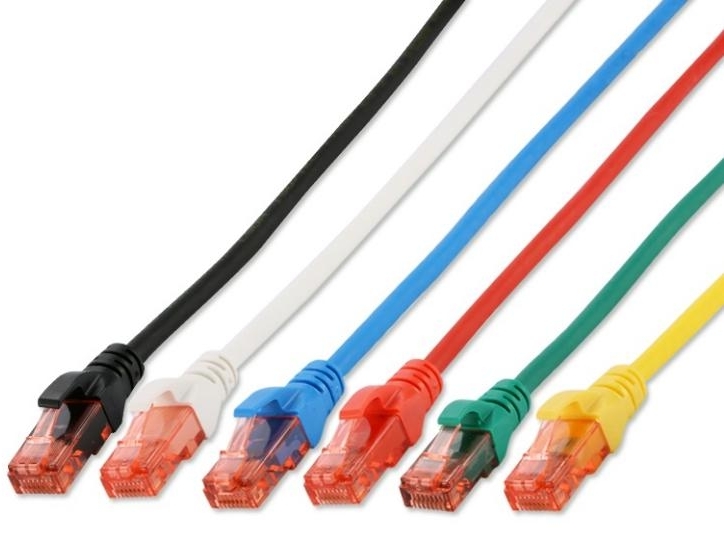

Cat 6 UTP Patch Cords
Cat 6 patch cords are the primary connectivity product in this solution:
| Specification | Technical Details |
|---|---|
| Data Rate | 1GBase-T |
| Bandwidth | 250 MHz |
| Shielding Type | UTP (Un-shielded) |
| Conductor Material | Oxygen-Free Copper, 26 AWG Stranded |
| Cable Outer Diameter | 5.8 ± 0.3mm |
| Jacket Material | PVC/LSOH |
| Max Transmission Distance | 100 meters |
| Wiring Standard | T568B, Straight-Through |
| Connector | RJ45 8P8C Modular Plug with Snagless Design |
| Contact Plating | Phosphor Bronze, 3μ Gold-plated |
| Available Lengths | 0.25m, 0.5m, 1m, 2m, 3m, 5m, 10m, 15m, 20m, 25m, 30m … … |
| Cable Colors | Blue / Red / White / Black / Green / Yellow |
| Operating Temperature | -20 ~ 75°C |
Key Features:
- Central Cross Separator: Maintains pair spacing, reducing crosstalk and ensuring stable signal integrity
- Pure Oxygen-Free Copper Conductors: Low attenuation for reliable Gigabit transmission
- Fluke Performance Verified: Factory-tested to meet Cat.6 Class E standards
- Multiple Color Options: Gray, Blue, and custom colors available

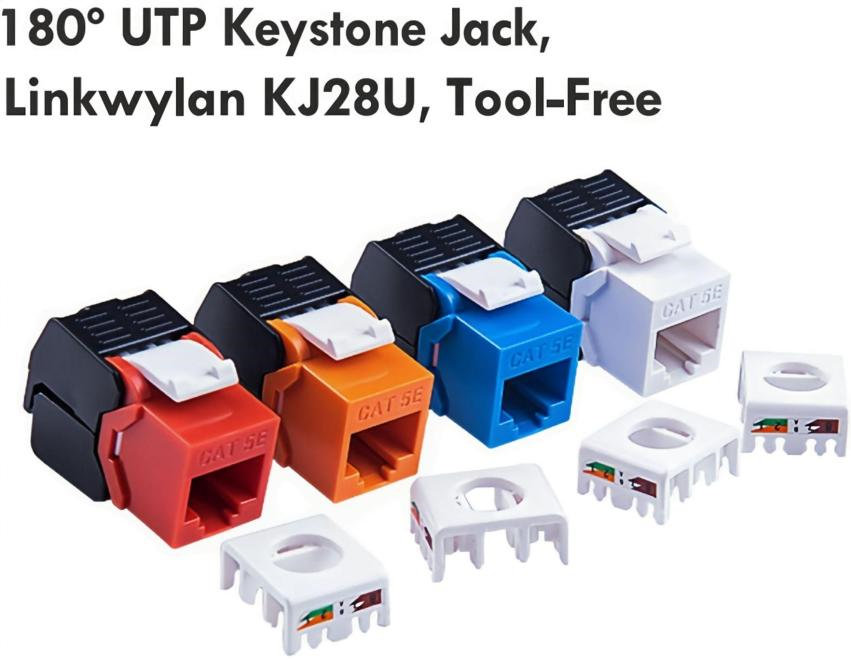

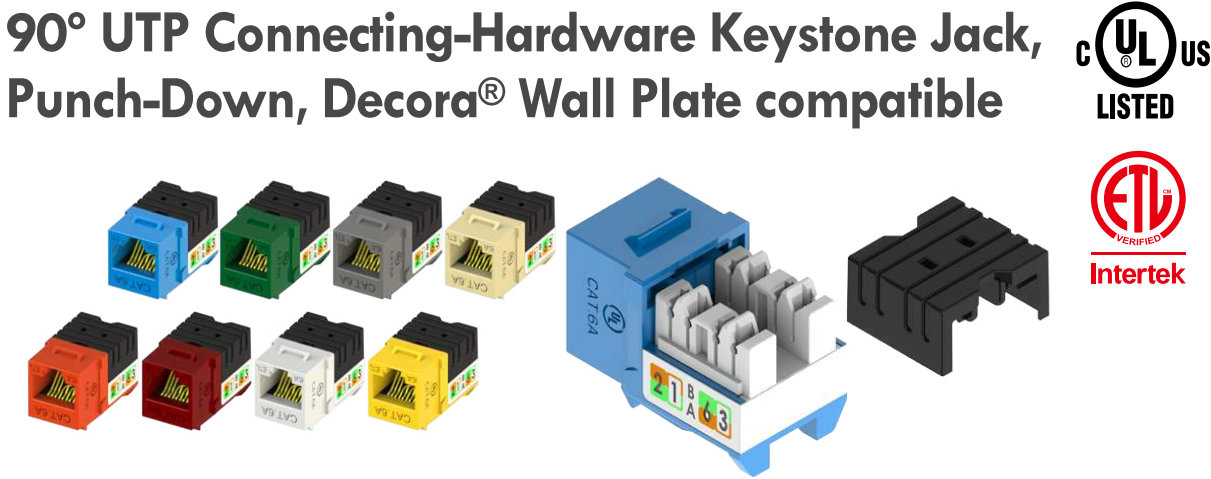

Cat.6 UTP Keystone Jacks
Linkwylan offers versatile Cat6 UTP Keystone modules for termination in patch panels and wall plates:
Cat.6 Color-Coded Keystone Modules
For enhanced cable management and visual identification, Linkwylan offers color-coded shielded Cat.6A Keystone modules in Apple Green, Grey, Orange, and Violet. Color-coding enables:
- Simplified network troubleshooting and identification
- Efficient cable management in high-density patching fields
- Clear visual segregation of different network segments or applications
RJ45 UTP Coupler Modules:
- 1GBase-T support with RJ45 interface
- Phosphor bronze gold-plated contacts for reliable connectivity and durability
- ABS plastic construction for lightweight, durable performance
- Supports 23-26AWG cable termination
- Compatible with T568A/T568B wiring standards
- Operating temperature: -10°C to 65°C
- Available in multiple colors
Key Features
- Tool-free termination for rapid installation without specialized equipment
- Reusable design allows termination rework without connector replacement
- Compact, refined design ideal for engineering, home, and commercial deployments
- Gold-plated contacts ensure reliable connectivity

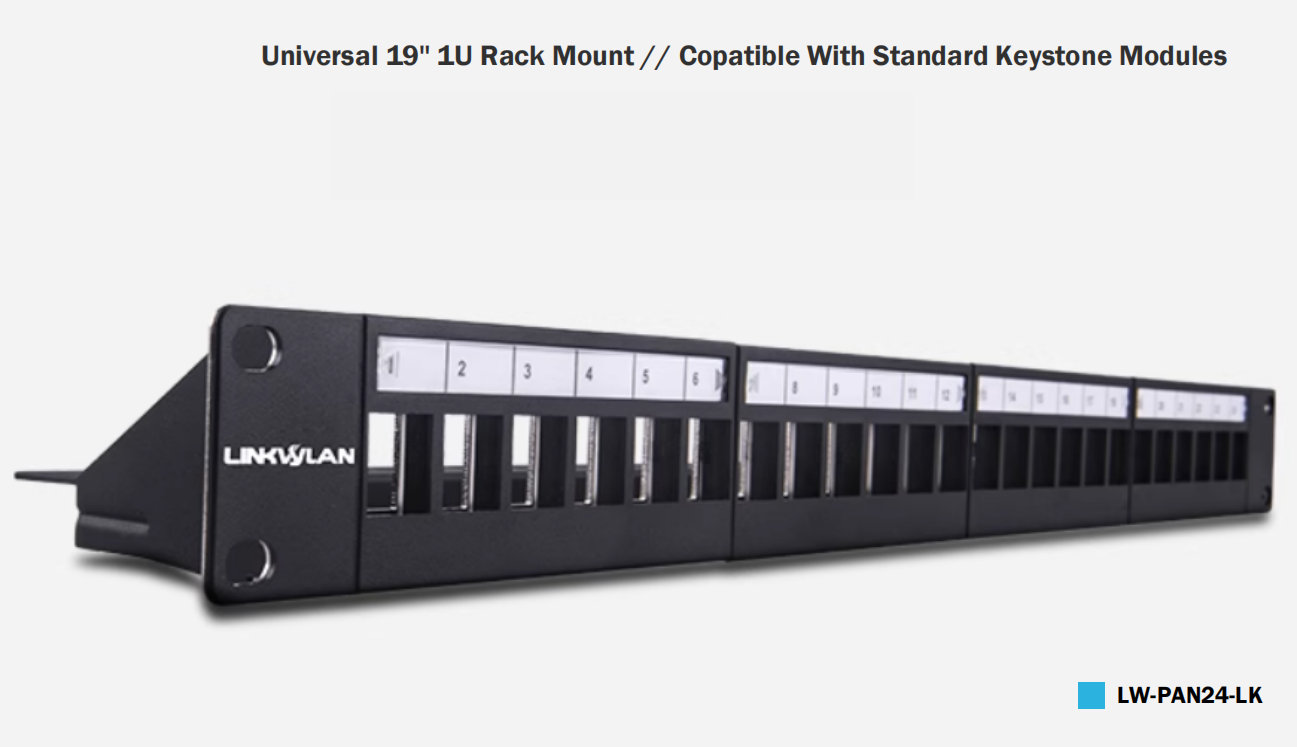

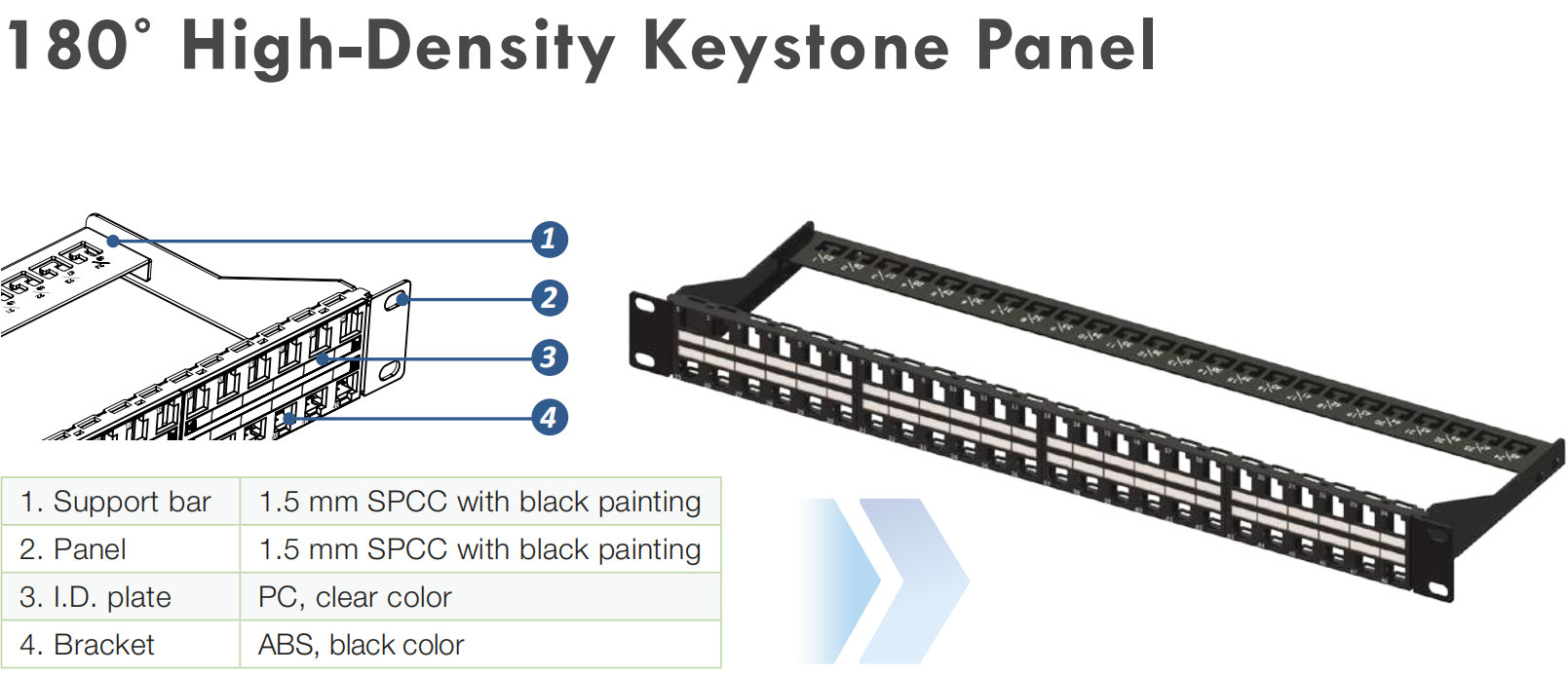

Cat6 UTP Patch Panels
Linkwylan provides high-density UTP patch panels for organized cable management:
| Specification | LW-PAN24-LK (24-Port) | LW-PAN48-SL (48-Port) |
|---|---|---|
| Port Count | 24 ports | 48 ports |
| Rack Height | 1U | 1U |
| Mounting | 19″ rack-mountable / wall-mountable | 19″ rack-mountable / wall-mountable |
| Material | Nickel-plated steel | Cold-rolled steel |
| Shielding Type | UTP/STP compatible | UTP/STP compatible |
| Module Support | RJ45 Ethernet, HDMI, Voice, USB | RJ45 Ethernet, HDMI, Voice, USB |
| Cable Management | Detachable rear management bracket | Detachable rear management bracket |
Key Features:
- High-Density Design: 24 or 48 ports in 1U optimizes rack space utilization
- Digital Coding: Numbered ports for easy identification and cable management
- EMI Protection: Nickel-plated steel construction blocks external interference
- Detachable Rear Cable Management: Ensures proper bend radius and clean routing
- Mixed Connectivity: Supports copper and fiber modules in the same frame
- Ideal for Data Centers: High-density solution for copper network management and cabling
UTP Modular Connectors & Adapters
Keystone Adapters with PCB Design:
- RJ45 female-to-female connection
- Built-in PCB for stable, reliable connection
- Gold-plated contacts for optimal signal integrity
- Keystone snap-in design compatible with Linkwylan panels and wall plates
- Ideal for cable extension and patch panel connections

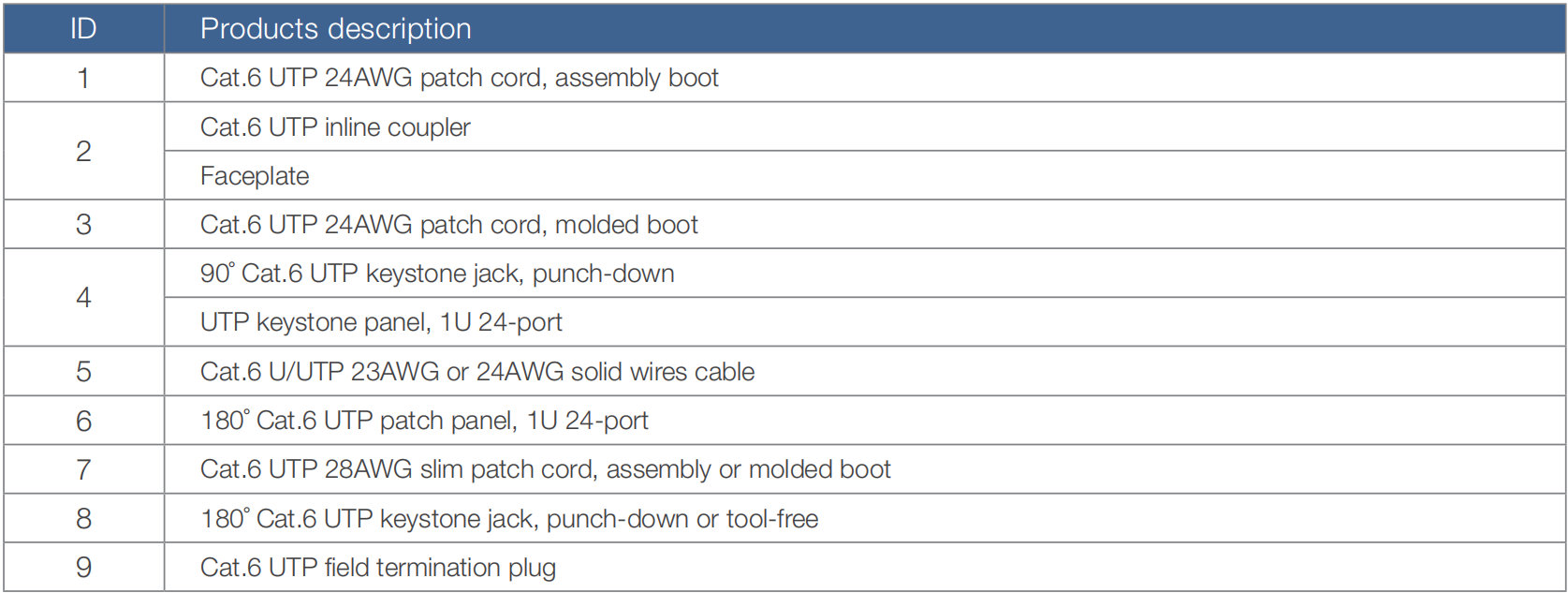

How Components Work Together in Data Center Architecture
| Component | Function in Data Center | Typical Location |
|---|---|---|
| Cat.6 UTP Installation Cable | Horizontal/backbone connectivity between distribution areas | HDA to EDA, MDA to HDA |
| Cat.6 Patch Cords | Server-to-switch connectivity within racks or adjacent racks | EDA (Equipment Distribution Area) |
| Cat.6 Keystone Jacks | Termination points in patch panels and faceplates | Patch panels, wall plates |
| Cat.6 Field Connectors | Field-terminated custom cable assemblies | On-site installations, custom runs |
| Cat.6 Couplers | Cable extension and waterproof connections | Outdoor, underwater, wet locations |
Application Scenarios
01Data Center Network
24/48-port 1U patch panels with Cat6 UTP installation cable and Keystone jacks
02Enterprise Structured Cabling
End-to-end Cat6 UTP solution meeting ISO/IEC 11801 and TIA-568.2-D standards
03SMB & Office Networks
Cost-effective 1000Base-T cabling for switches, servers, and workstations
04Residential Networking
UTP Keystone jacks and panels for home network installations
Solution Value Proposition
Cost-Effective Performance
Supports 1000Base-T at full 100m channel length—ideal for enterprise and SMB applications
Standards-Compliant
Meets ISO/IEC 11801, ANSI/TIA-568.2-D, and EN 50173 requirements
Fluke-Validated Quality
Installation cables and patch cords pass Fluke testing with performance reports
Complete Ecosystem
From installation cables to Keystone jacks to patch panels—all components work together as an integrated system
Flexible Deployment
Backward compatible with Cat5e and lower-category systems
PoE/PoE+ Ready
Supports IEEE 802.3af/at for powering cameras, APs, VoIP devices

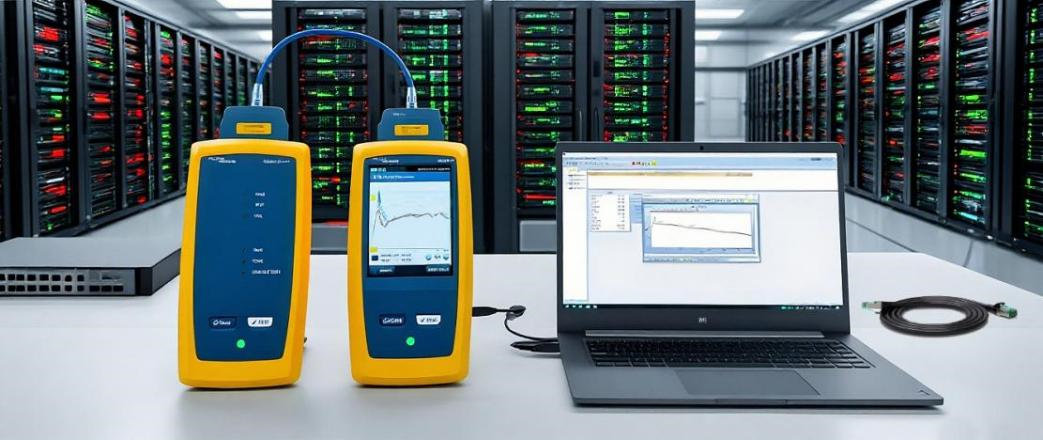

Quality Assurance
Linkwylan ensures reliability through:
- ISO 9001 & ISO 14001 certified manufacturing processes
- Fluke Channel Link Testing for all cable components
- Comprehensive compliance: TIA/EIA 568C.2-1, ISO/IEC 11801 Class E
- Global certifications: CE, RoHS, REACH
- 10+ years of structured cabling expertise
Build your cost-effective, high-performance network with Linkwylan Cat6 UTP Cabling Solutions—reliable Gigabit connectivity for every environment.
