Linkwylan Copper Cabling Components for Data Center Systems
Linkwylan is the professional brand with over 10 years of experience in structured cabling solutions. The company focuses on high-level network cabling products for data centers, IT/server rooms, building cabling, and home/office installations. Their product portfolio is developed through collaboration with international industrial design institutes and Taipei development centers, with representative innovations including RJ45 tool-less modular filed connectors and RJ45 tool-free keystone modules.
Brand Advantage
Why Choose Linkwylan for Data Center Cabling?
- Comprehensive Portfolio: Complete copper ecosystem including installation cables, patch panels, modular connectors, and patch cords
- Industry Standards Compliance: Products meet ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D standards
- Fluke Channel Tested: Every patch cable passes Fluke Channel Link Testing with comprehensive reports covering NEXT, PS NEXT, ACR-F, and RL parameters
- Global Certifications: ISO9001, ISO14001, CE, RoHS, REACH, and WEEE certified
- Applications: Data centers, server rooms, building cabling, and home/office installations
Copper Cabling Portfolio

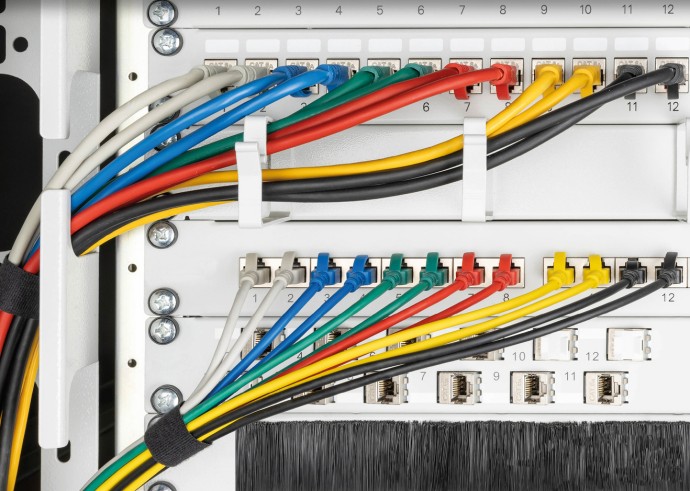

1. High-Speed Patch Cords
Linkwylan offers a complete range of shielded patch cords for data center applications:
| Model | Cat6 SF/UTP | Cat6A S/FTP | Cat7 S/FTP | Cat8 S/FTP |
|---|---|---|---|---|
| Data Rate | 1Gbps | 10Gbps | 10GBase-T | 25/40GBase-T |
| Bandwidth | 250MHz | 500MHz | 600MHz | 2000MHz |
| Conductor | 28AWG stranded | 26AWG stranded | 26AWG stranded | 24AWG stranded |
| Shielding | SF/UTP (double) | S/FTP (double) | S/FTP (double) | S/FTP (double) |
| Jacket | PVC | PVC/LSZH | PVC/PE | LSZH/TPE |
| Max Length | 100m | 100m | 100m | 30m |
| Outer Diameter | 6.2±0.3mm | 6.2±0.3mm | 6.3±0.3mm | 7.2±0.3mm |
Key Features:
- Double shielding (S/FTP): Each pair screened by AL-Mylar foil; overall shielding by AL-Mg braid wires
- Snagless boot design: Protects locking clips on RJ45 connectors from damage during installation
- Stranded copper conductors: Ensures flexibility for frequent handling
- Fluke performance tested: Every cable passes Fluke Channel Link Test (94m) per TIA/EIA 568B & ISO/IEC 11801 standards
- T568B wiring standard, straight-through configuration
- PoE+ support (IEEE 802.3af/at): Delivers power and data to PDs including cameras, APs, VoIP devices
Copper Cabling Portfolio
2. High-Density Patch Panels

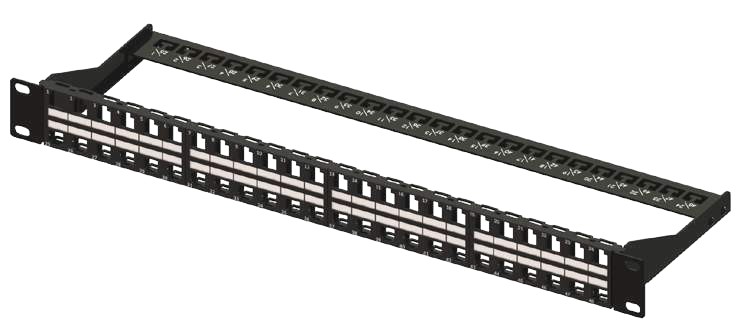

Linkwylan 48-Port 1U Patch Panel (LW-BPP-481/BK)
| Specification | Detail |
|---|---|
| Port Density | 48 ports in 1U height |
| Mounting | 19" rack-mountable or wall-mountable |
| Material | Cold-rolled steel with nickel-plated digital coding design |
| Shielding | Shielded/Unshielded (STP/UTP) options available |
| Compatibility | Accepts RJ45 Ethernet, HDMI, voice, USB modules |
| Dimensions | 44×481.5×92mm (H×W×D) |
Key Benefits:
- High-density design: 48 ports in 1U optimizes rack space

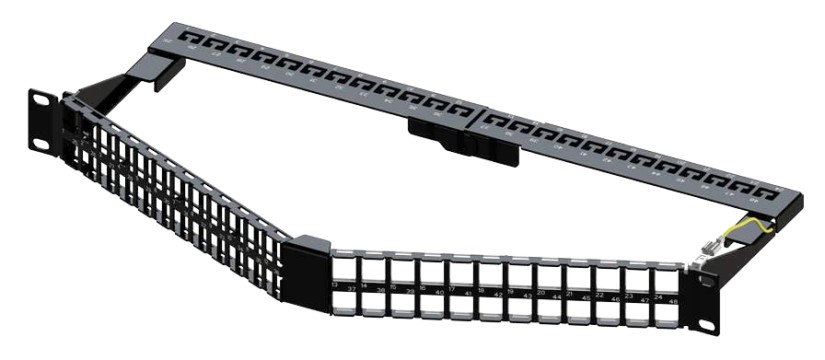

- Detachable rear cable management: Ensures proper bend radius and clean routing
- Numbered ports for easy identification and cable management
- EMI protection: Nickel-plated steel construction blocks external interference
- Mixed connectivity: Supports copper and fiber modules in the same frame
Copper Cabling Portfolio
3. Modular Connectors & Keystone Jacks

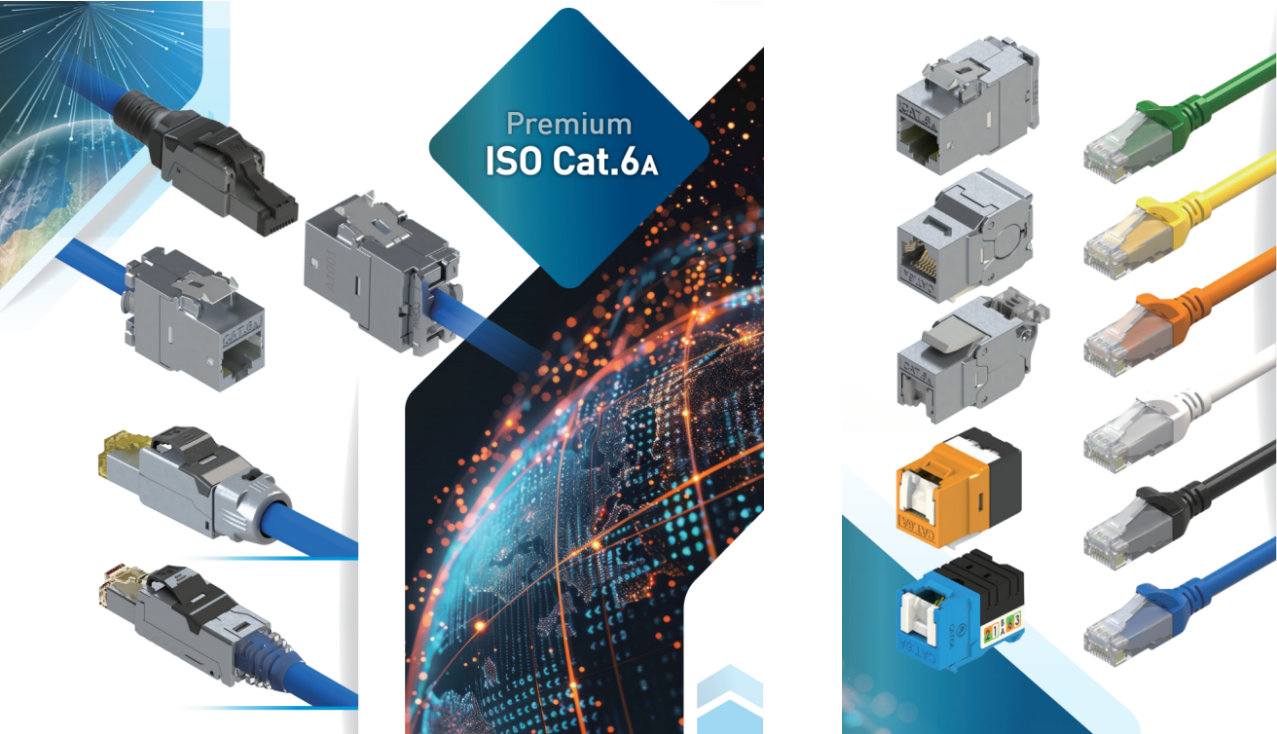

Linkwylan offers a full range of RJ45 modular connectors:
Cat6A Shielded Keystone Jack
- Supports 10Gbps at 500MHz, compliant with Cat6A standards
- Full metal shielding with EMI/RFI protection
- Toolless snap-in design for quick installation
- Available with 50μ-inch gold plating for high reliability
- UL/CSA certification optional
Toolless RJ45 Field Connectors
- Available for Cat6A, Cat7, and Cat8 applications
- Tool-free termination for rapid field installations
- Phosphor bronze contacts with gold plating
- Operating temperature: -40°C to 80°C
- Supports 23-26 AWG installation cables
- Die-cast metal construction with PCB design up to 40G

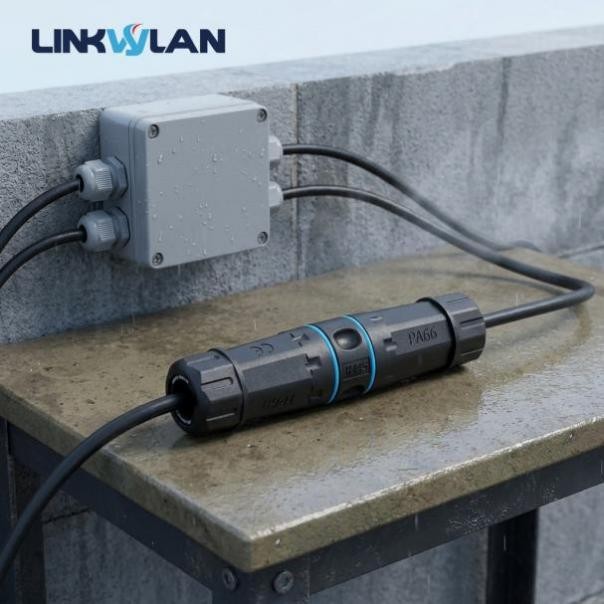

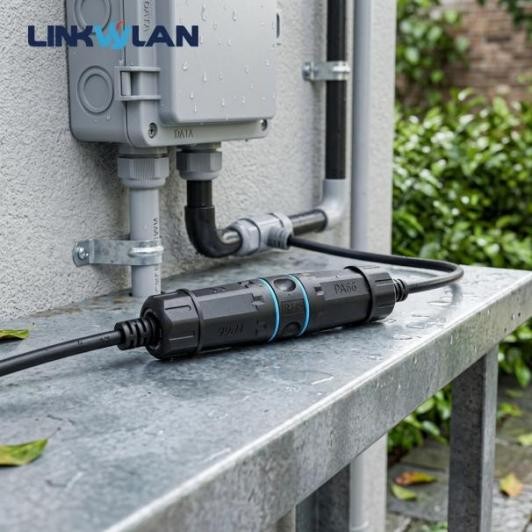

IP67 Waterproof Couplers
- Cat5e UTP and Cat6A FTP waterproof straight-through connectors
- Suitable for outdoor, underwater, and wet environments
- Protect equipment interfaces from damage
Copper Cabling Portfolio
4. Installation Cables
Linkwylan provides bulk copper cables for structured cabling infrastructure:
- Cat 6A/7 S/FTP installation cables supporting 10Gbps at 500MHz within 100m
- Cat 8 S/FTP installation cables supporting 40Gbps at 2000MHz within 30m
- Double-shielded (S/FTP) with LSOH/LSZH jacket options
- Available in multiple colors for easy cable identification
Architecture
How Components Work Together in Data Center Architecture
| Component | Function in Data Center | Typical Location |
|---|---|---|
| Patch Cords (Cat6/Cat6A/Cat8) | Server-to-switch connectivity within racks or adjacent racks | EDA (Equipment Distribution Area) |
| Patch Panels | Centralized connection hub; manage all copper terminations | MDA, HDA racks |
| Keystone Jacks | Termination points in patch panels and faceplates | Patch panels, wall plates |
| Installation Cables | Horizontal/backbone connectivity between distribution areas | HDA to EDA, MDA to HDA |
Applications
Application Scenarios
Rack-Internal Server-to-Switch
Cat6/6A patch cords (0.25-5m) provide cost-effective low-latency connectivity, supporting up to 1-10Gbps
MDA-HDA Structured Cabling
Cat6A installation cables (up to 100m) with S/FTP double shielding for high-speed 10G transmission
High-Density Patch Fields

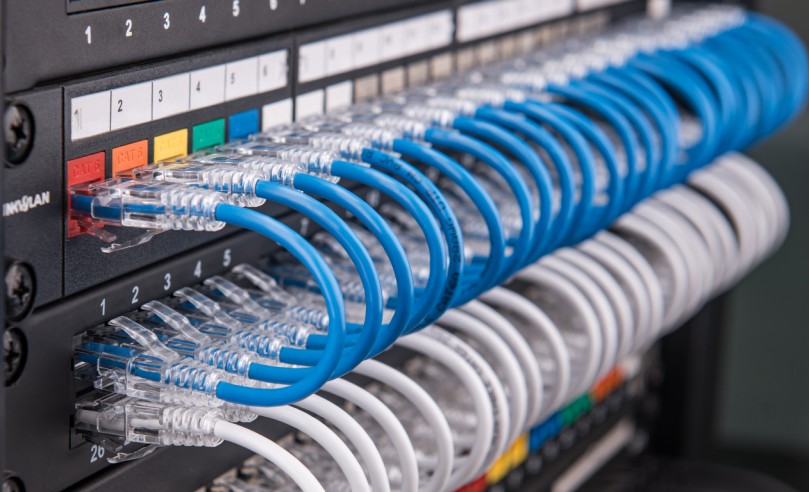

48-port 1U patch panels with color-coded patch cords for efficient cable management
AI/GPU Cluster Deployments
Cat8 40G patch cords (up to 30m) with 22 AWG conductors and LSOH jacket for high-bandwidth applications
PoE+ Device Connectivity
Cat6A S/FTP patch cords supporting 90W PoE++ for cameras, APs, and sensors
Outdoor/Harsh Environments
IP67 waterproof couplers for outdoor, underwater, or wet location installations
Quality Assurance
Quality Assurance
Linkwylan ensures reliability through:
- ISO 9001 & ISO 14001 certified manufacturing processes
- Fluke Channel Link Testing for every patch cable
- Comprehensive compliance: TIA/EIA 568B, ISO/IEC 11801, ANSI/TIA-568.2-D
- Global certifications: CE, RoHS, REACH, WEEE
- R&D capabilities: 30+ engineers collaborating with Taipei design institutes
Build your data center with Linkwylan copper cabling solutions—where every connection matters.
