Overview
Linkwylan CAT8 Structured Cabling Solutions
Linkwylan CAT8 Structured Cabling Solutions are purpose-built for data centers, server rooms, and high-performance enterprise networks, delivering 25/40GBase-T high-speed Ethernet applications over distances up to 30 meters—an ideal foundation for future-proof, high-bandwidth network infrastructure.
The solution strictly complies with ISO/IEC 11801 and ANSI/TIA-568.2-D international standards. All components are Fluke channel tested to ensure end-to-end link performance meets or exceeds specification requirements.
Category 8 (Cat 8) is the latest Ethernet cable standard defined by the Telecommunications Industry Association (TIA) and International Organization for Standardization (ISO). Cat 8 is designed to support data rates of up to 40Gbps (Gigabits per second) over short distances, making it an ideal choice for high-speed networking applications. Here are some key characteristics of Category 8:
- Data Rate: Cat 8 supports data rates of up to 40Gbps, making it suitable for high-speed data transfer and bandwidth-intensive applications.
- Cable Length: It can support 40Gbps up to a maximum distance of 30 meters (about 98 feet).
- Connector Type: Cat 8 cables typically use the 8P8C (RJ45) connector, the same connector used in previous Ethernet cable categories.
- Shielding: Cat 8 cables are fully shielded (S/FTP), which provides better protection against electromagnetic interference (EMI) and crosstalk, ensuring reliable performance.
- Backward Compatibility: Cat 8 cables are backward compatible with previous Ethernet standards, such as Cat 6A, Cat 6, and Cat 5e. However, to achieve the maximum data rate, both ends of the connection (cables, connectors, and equipment) need to be Cat 8 compliant.
- Usage: Cat 8 cables are ideal for environments requiring high-speed data transfer, such as data centers, server rooms, and enterprise networks.
- Future-proofing: Deploying Cat 8 cabling can be seen as a way to future-proof your network infrastructure, providing headroom for future technology advancements.
Overall, Category 8 cables represent the latest in Ethernet cable technology, providing high-speed data transfer and reliability, making them an excellent choice for demanding networking environments.

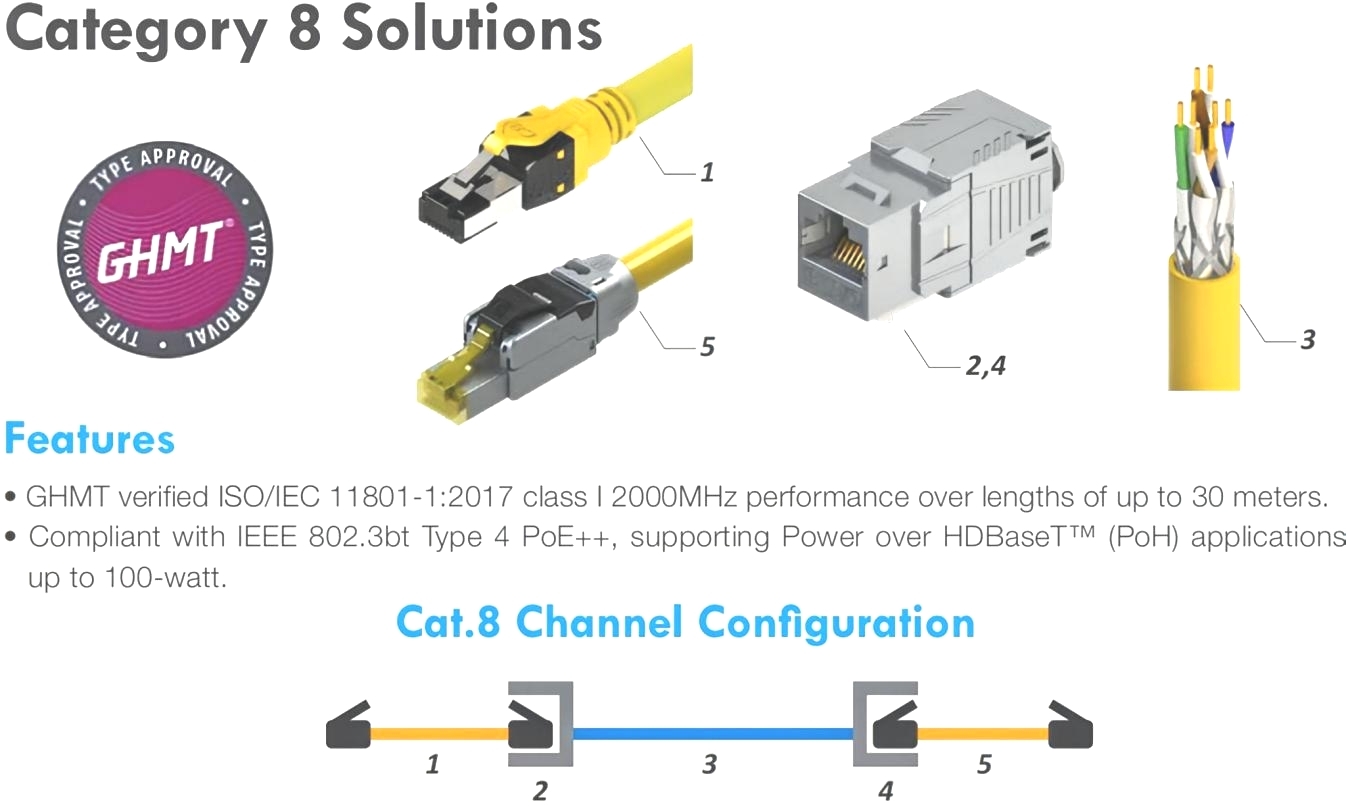

Core Components

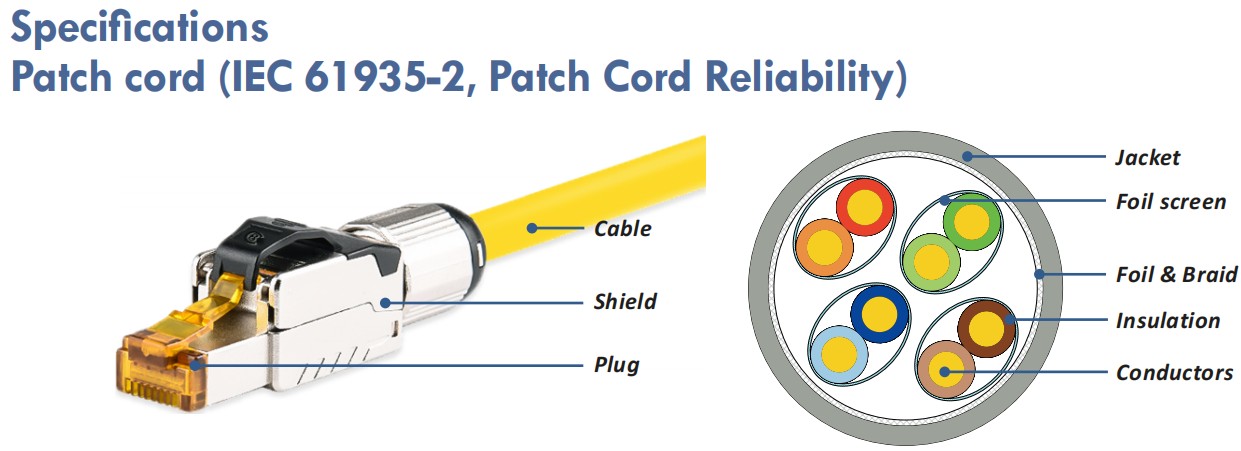

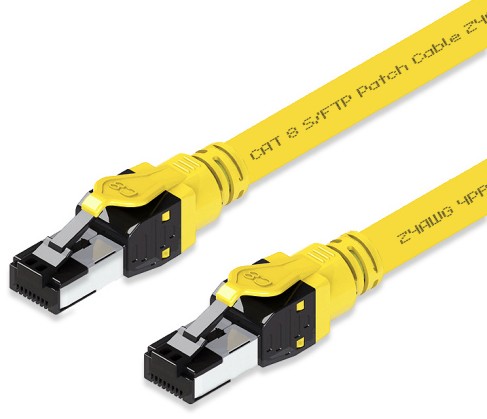

1. CAT8 S/FTP Double-Shielded Patch Cords
CAT8 patch cords are the core connectivity product in this solution:
| Specification | Technical Details |
|---|---|
| Data Rate | 25/40GBase-T |
| Bandwidth | 2000 MHz |
| Shielding Type | S/FTP (Double-Shielded) |
| Conductor Material | Oxygen-Free Copper, 24 AWG Stranded |
| Cable Outer Diameter | 7.3 ± 0.3mm |
| Jacket Material | LSOH/TPE |
| Max Transmission Distance | 30 meters |
| Wiring Standard | T568B, Straight-Through |
| Operating Temperature | -20 ~ 75°C |
Key Technology Highlights:
- Double-Shielded Construction (S/FTP): Each pair is individually shielded with AL-Mylar foil, with an overall AL-Mg braided shield—effectively canceling crosstalk between twisted pairs and ensuring stable signal integrity.
- High-Conductivity Oxygen-Free Copper Conductors: Low-attenuation OFC material guarantees consistent high-speed transmission quality.
- Fluke Performance Verified: Every patch cord is factory-tested using Fluke channel test equipment, with comprehensive test reports provided.
Supporting Infrastructure Components

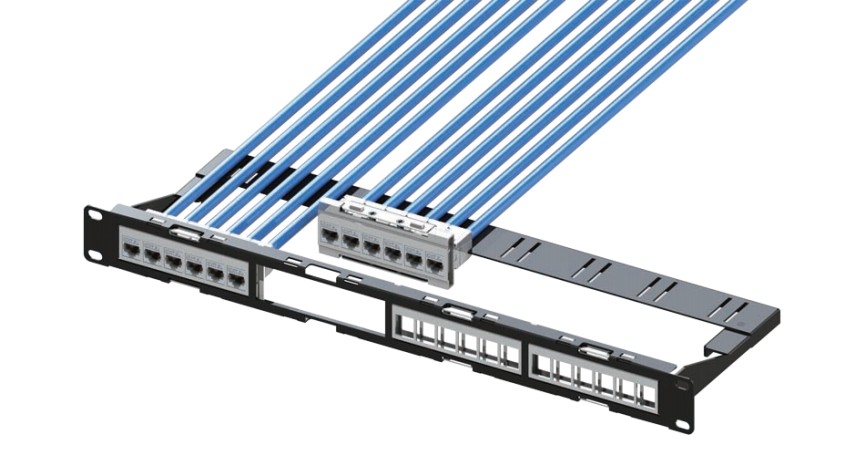

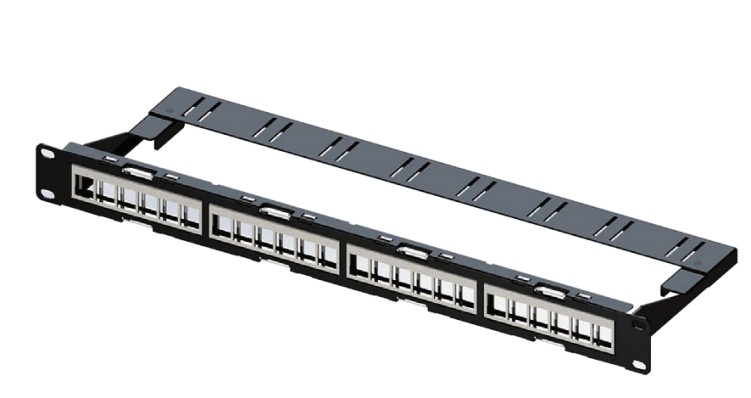

High-Density Patch Panels
Linkwylan offers 24-port 1U 19-inch shielded/unshielded patch panels featuring nickel-plated steel construction with digital coding. The detachable rear cable management bracket ensures proper bend radius and simplifies cable organization. Empty patch panels support mixed modules including RJ45 Ethernet, HDMI, voice, and USB connectors—ideal for high-density management in data center environments.
Supporting Infrastructure Components

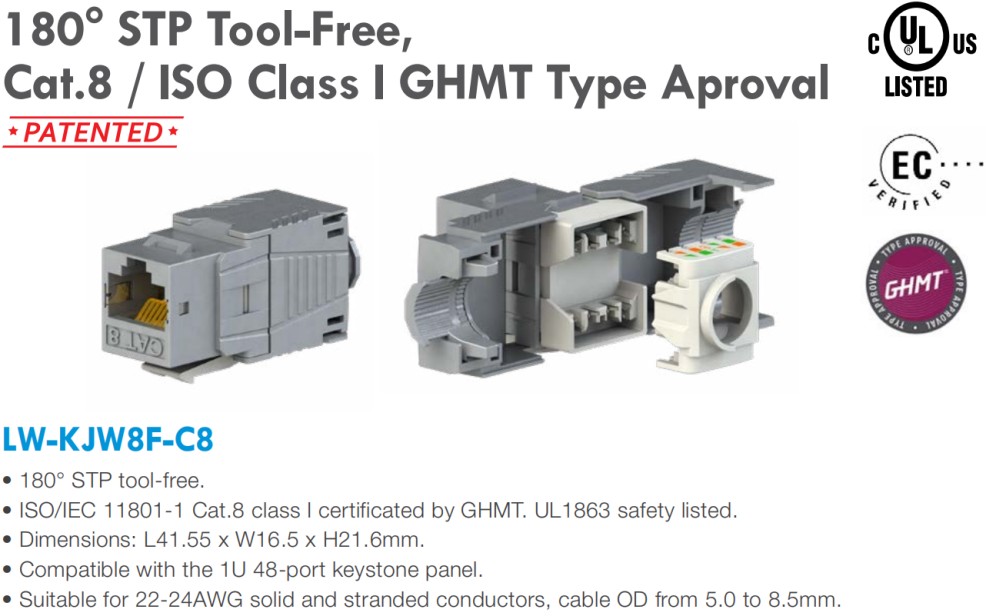

CAT8 Shielded Keystone Jacks
Linkwylan provides CAT8-compatible shielded Keystone modules supporting 40Gbps transmission. The toolless termination design enables rapid field deployment. Select models come with a 15-year manufacturer’s warranty, reflecting the company’s confidence in product quality and reliability.
Core Components
3. Backward Compatibility
The CAT8 system is fully backward compatible with lower-category cables and equipment such as Cat6A, Cat6, and Cat5e, allowing seamless integration with existing network infrastructure—protecting your investment while enabling smooth future upgrades.
Applications
Application Scenarios
Intra-Rack Interconnect in Data Centers
CAT8 patch cords support 40G transmission up to 30 meters—ideal for short-distance, high-speed connections between servers and top-of-rack switches.
Enterprise Core Networks
Meets the high-bandwidth, low-latency demands of financial, government, educational, and research institutions.
High-Performance Computing (HPC)
Supports large-scale data exchange in AI training, scientific computing, and other intensive workloads.
Ideal Deployment Environments
Data centers, network equipment rooms, office network device connections—including PoE switches, servers, workstations, and other end equipment.
Why Linkwylan
Solution Value Proposition
Future-Ready Performance
Supports 40G speeds, providing ample headroom for bandwidth upgrades over the next 3-5 years
Standards-Guaranteed
Strict compliance with ISO/IEC 11801 and ANSI/TIA-568.2-D international standards
End-to-End Link Quality
Fluke channel testing ensures consistent performance across patch cords, modules, and patch panels—a truly end-to-end solution
Flexible & Scalable Deployment
Backward compatibility and modular design enable smooth network upgrades with minimal disruption
Why Linkwylan
Why Linkwylan CAT8?
- Proven Manufacturing Expertise10+ years of structured cabling experience with manufacturing facilities spanning 70,000+ sqm
- R&D Innovation30+ engineers collaborating with German and Taiwanese design institutes
- Global CertificationsISO9001, ISO14001, CE, RoHS, REACH, WEEE
- Application AssuranceBacked by comprehensive system performance warranties
Build your high-performance network infrastructure with Linkwylan CAT8 Structured Cabling Solutions—where every connection carries the future.
Ready to discuss your CAT8 cabling requirements?
