Linkwylan Cat.6A Cabling Solutions
Linkwylan Cat.6A Cabling Solutions are engineered for high-speed enterprise networks, data centers, and structured cabling environments, delivering 10Gbps Ethernet performance over distances up to 100 meters—making them the ideal choice for bandwidth-intensive applications such as 4K video streaming, cloud computing, and real-time data transfers.
The solution strictly complies with ISO/IEC 11801 Class Ea and ANSI/TIA-568.2-D international standards. All components undergo rigorous Fluke Channel Link Testing to ensure end-to-end link performance and reliability
Category 6A (Cat 6a) is the enhance Ethernet cable standard defined by the Telecommunications Industry Association (TIA) and International Organization for Standardization (ISO). Cat 6A is designed to support data rates of up to 10Gbps (Gigabits per second) over short distances, making it an ideal choice for high-speed networking applications.
Core Components

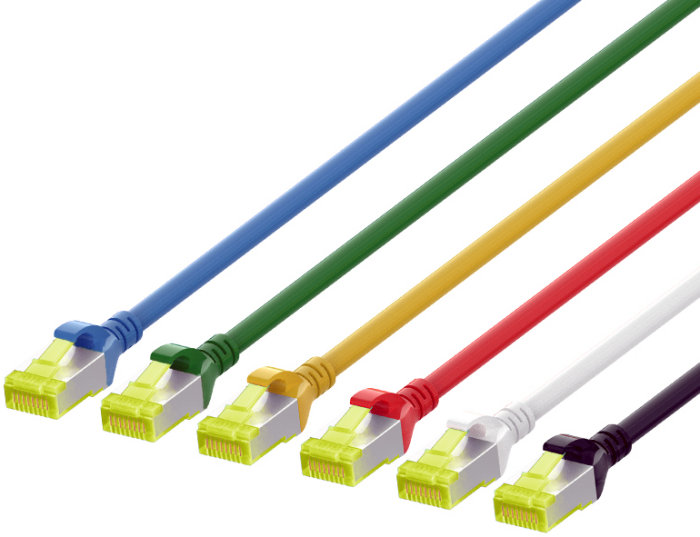

1. Cat 6A S/FTP Double-Shielded Patch Cords
Cat 6A patch cords are the primary connectivity product in this solution:
| Specification | Technical Details |
|---|---|
| Data Rate | 10GBase-T |
| Bandwidth | 500 MHz |
| Shielding Type | S/FTP (Double-Shielded) |
| Conductor Material | Oxygen-Free Copper, 26 AWG Stranded |
| Cable Outer Diameter | 6.2 ± 0.3mm |
| Jacket Material | PVC/LSOH |
| Max Transmission Distance | 100 meters |
| Wiring Standard | T568B, Straight-Through |
| Connector | RJ45 8P8C Modular Plug with Snagless Design |
| Contact Plating | Phosphor Bronze, 3μ Gold-plated |
| Available Lengths | 0.25m, 0.5m, 1m, 2m, 3m, 5m, 10m, 15m, 20m, 25m, 30m … … |
| Cable Colors | Blue / Red / White / Black / Green / Yellow |
| Operating Temperature | -20 ~ 75°C |
Key Technology Highlights:
- Double-Shielded Construction (S/FTP): Each pair is individually shielded with AL-Mylar foil, with an overall AL-Mg braided shield—effectively canceling crosstalk and ensuring stable signal integrity in high-interference environments.
- Snagless Boot Design: Protects RJ45 connector locking clips from damage during installation and frequent handling Fluke.
- Fluke Performance Verified: Every patch cord passes Fluke Channel Link Test (94m) per TIA/EIA 568B & ISO/IEC 11801 Class Ea standards. Test reports include NEXT, PS NEXT, ACR-F, PS ACR-F, ACR-N, PS ACR-N, and RL parameters.
Core Components

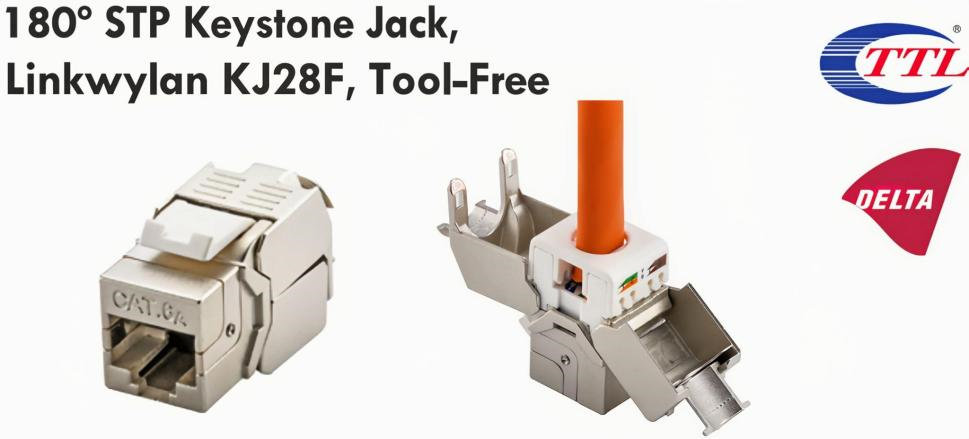

2. Cat.6A Shielded Keystone Jacks
Linkwylan offers a full range of Cat.6A shielded Keystone jacks for termination in patch panels and wall plates:

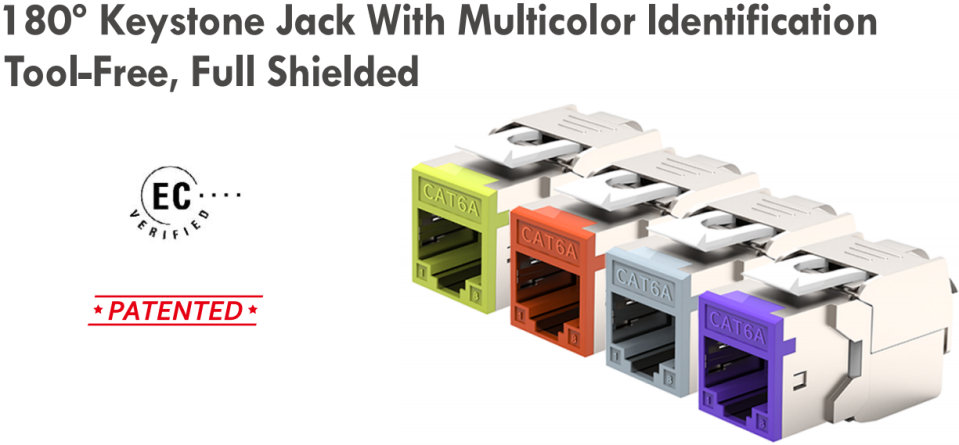

Cat.6A Color-Coded Keystone Modules
For enhanced cable management and visual identification, Linkwylan offers color-coded shielded Cat.6A Keystone modules in Apple Green, Grey, Orange, and Violet. Color-coding enables:
- Simplified network troubleshooting and identification
- Efficient cable management in high-density patching fields
- Clear visual segregation of different network segments or applications
| Specification | Technical Details |
|---|---|
| Data Rate | 10Gbps @ 55-65 meters |
| Frequency | 550MHz |
| Contact Material | Phosphor Bronze with 50μ Gold Plating |
| Shielding | Full Metal Shielding (EMI/RFI protected) |
| Termination | Toolless snap-in design |
| Shielding Effectiveness | Up to 60dB (Pro Model) |
| Compliance | ISO/IEC 11801 Cat6A, IEC 60603-7-5 |
Key Benefits
- Superior Conductivity: Phosphor bronze contacts offer 28% lower resistance than brass connectors, extending hardware longevity and ensuring reliable performance
- 98% EMI Rejection Rate: Full metal shielding significantly outperforms industry average of 75%, critical for industrial IoT and healthcare environments
- Toolless Installation: Reduces deployment time by up to 30% compared to screw-based jacks
- PoE/PoE+ Support: Supports up to 90W PoE++ for powering cameras, APs, VoIP devices, and other PDs
- Lifetime Warranty: Select models backed by a 15-year manufacturer’s warranty
Core Components
3. Cat.6A Toolless Field Connectors

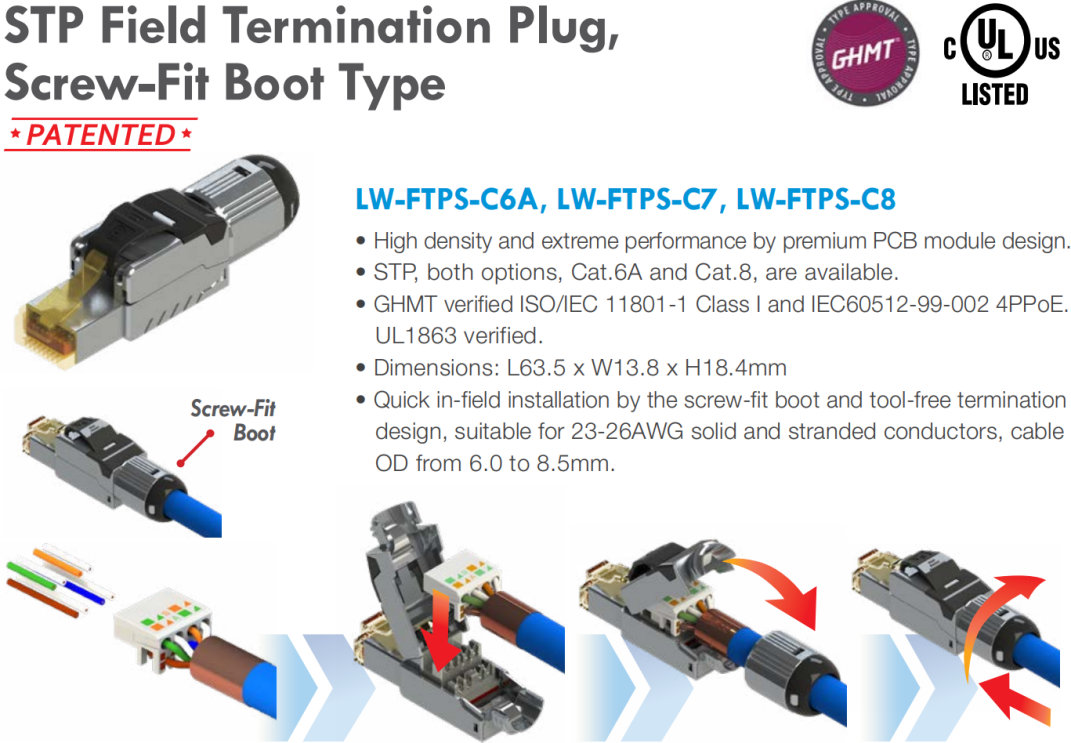

For field termination and custom cable assembly applications, Linkwylan offers Cat.6A shielded field connectors featuring:
- Tool-free termination for rapid deployment without specialized equipment
- 150° bend angle design for flexible routing in tight spaces
- Phosphor bronze contacts with gold plating for high durability and signal integrity
- Operating temperature range: -40°C to 80°C
- Supports 23-26 AWG installation cables
- Reusable design allows termination rework without connector replacement
Architecture

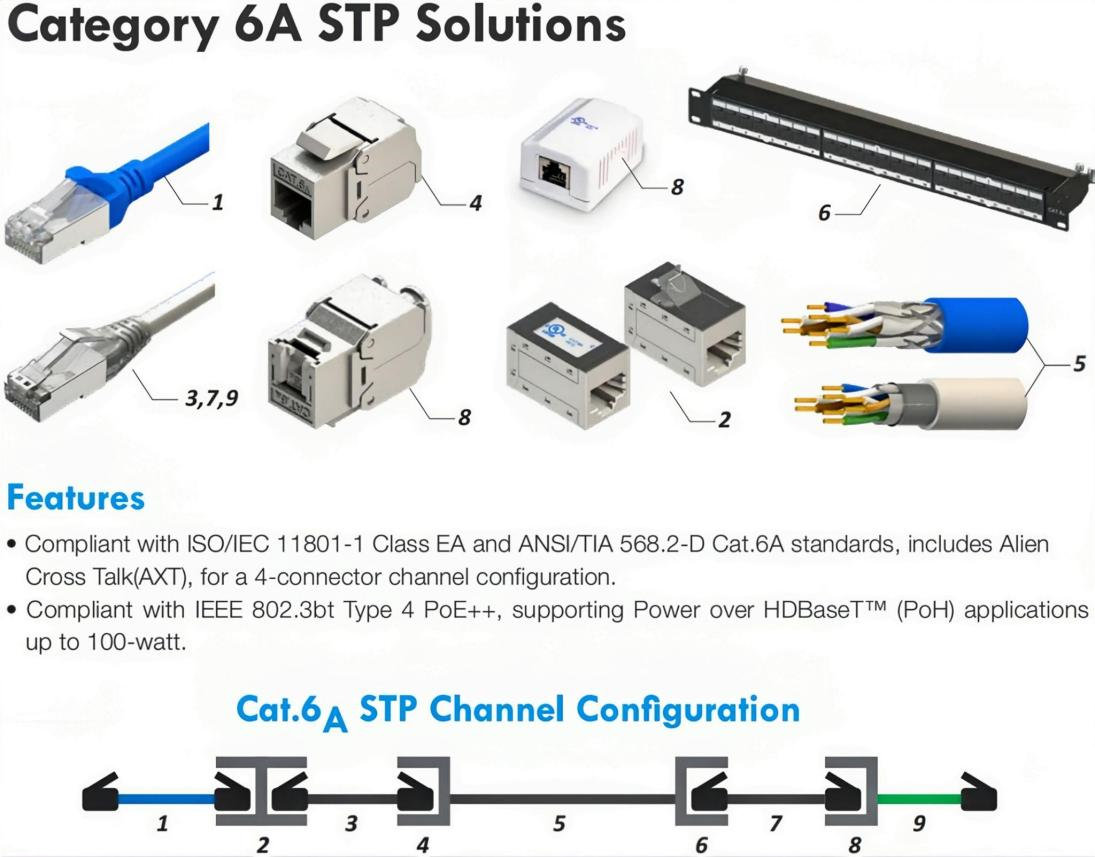

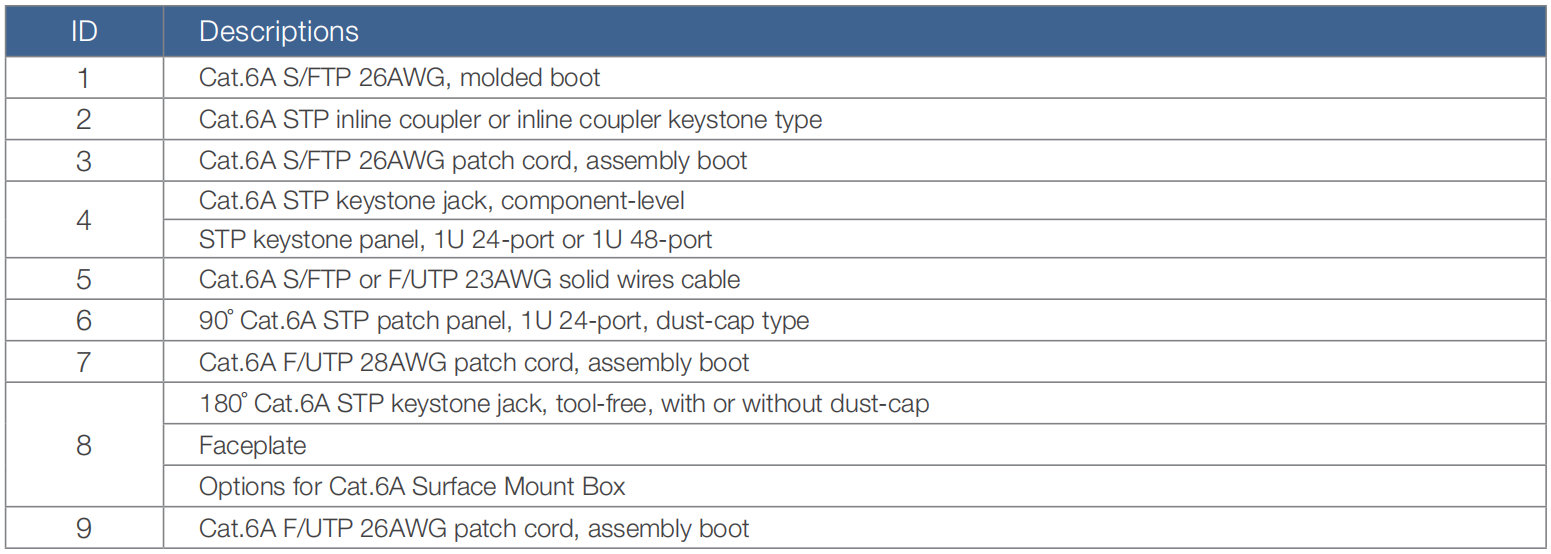

How Components Work Together in Data Center Architecture
| Component | Function in Data Center | Typical Location |
|---|---|---|
| Cat.6A Patch Cords | Server-to-switch connectivity within racks or adjacent racks | EDA (Equipment Distribution Area) |
| Cat.6A Keystone Jacks | Termination points in patch panels and faceplates | Patch panels, wall plates |
| Cat.6A Field Connectors | Field-terminated custom cable assemblies | On-site installations, custom runs |
| Cat.6A Couplers | Cable extension and waterproof connections | Outdoor, underwater, wet locations |
Applications
Application Scenarios
Intra-Rack Connections
Cat.6A S/FTP patch cords (0.25-3m) support 10Gbps with low latency
MDA-HDA Structured Cabling
Cat.6A installation cables (up to 100m) with double shielding for high-speed transmission
High-Density Patch Fields
24/48-port 1U patch panels with color-coded Keystone jacks for efficient management
Outdoor / Harsh Environments
IP67 waterproof couplers for outdoor, underwater, or wet location installations
PoE+ Device Connectivity
Cat.6A jacks and patch cords supporting 90W PoE++ for cameras, APs, sensors
Enterprise Core Networks
End-to-end Cat.6A structured cabling meeting ISO/IEC 11801 Class Ea standards
Why Linkwylan
Solution Value Proposition
10Gbps Performance
Supports 10GBase-T at full 100m channel length-ideal for bandwidth-intensive enterprise and data center applications
Standards-Compliant
Meets or exceeds ISO/IEC 11801 Class Ea, ANSI/TIA-568.2-D requirements
Fluke-Validated Quality
Every patch cable passes Fluke channel testing with comprehensive performance reports
Double-Shielded Reliability
S/FTP construction provides superior EMI/RFI protection and signal integrity in noisy environments
PoE++ Ready
Full support for up to 90W Power over Ethernet—future-proofing for IoT and high-power devices
Complete Ecosystem
From patch cords to Keystone jacks to field connectors—all components work together as an integrated system

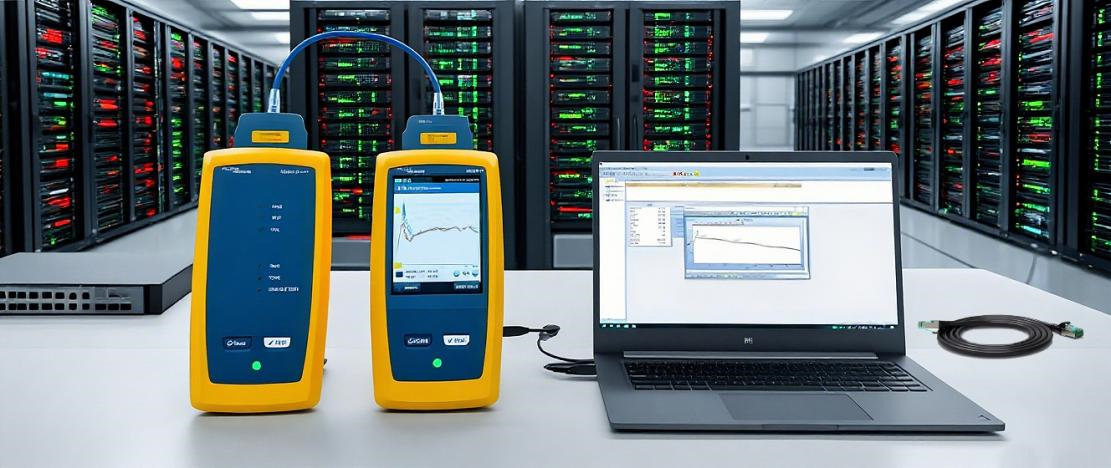

Quality Assurance
Quality Assurance
Linkwylan ensures reliability through:
- ISO 9001 & ISO 14001 certified manufacturing processes
- Fluke Channel Link Testing for every patch cable
- Comprehensive compliance: TIA/EIA 568B, ISO/IEC 11801 Class Ea
- Global certifications: CE, RoHS, REACH, WEEE
- Lifetime warranty on select Keystone products
- R&D expertise: 30+ engineers with over 10 years of structured cabling experience
Build your high-performance network with Linkwylan Cat.6A Cabling Solutions – where every connection delivers 10G reliability.
