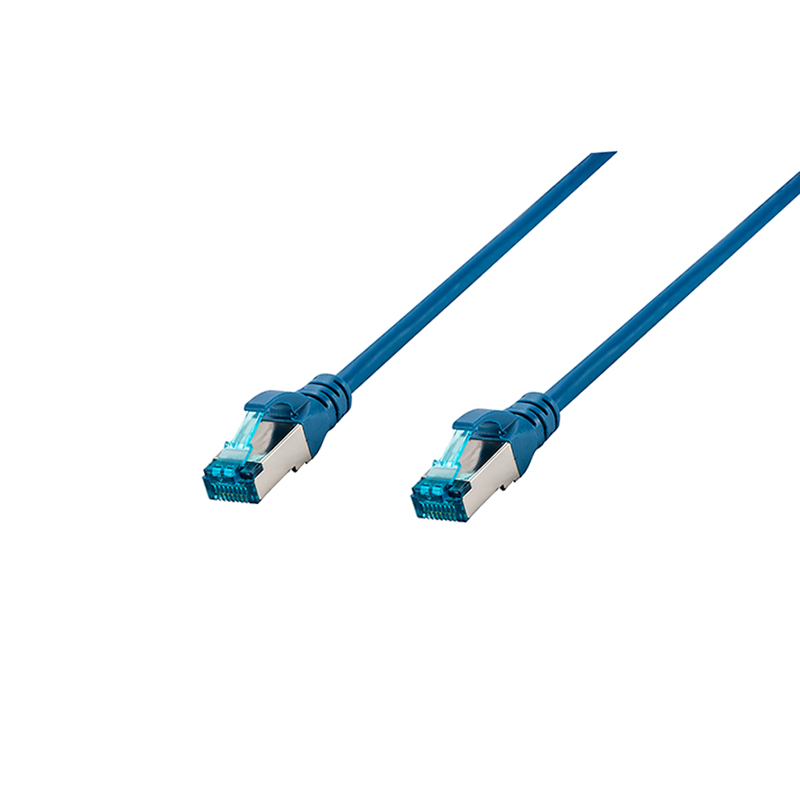

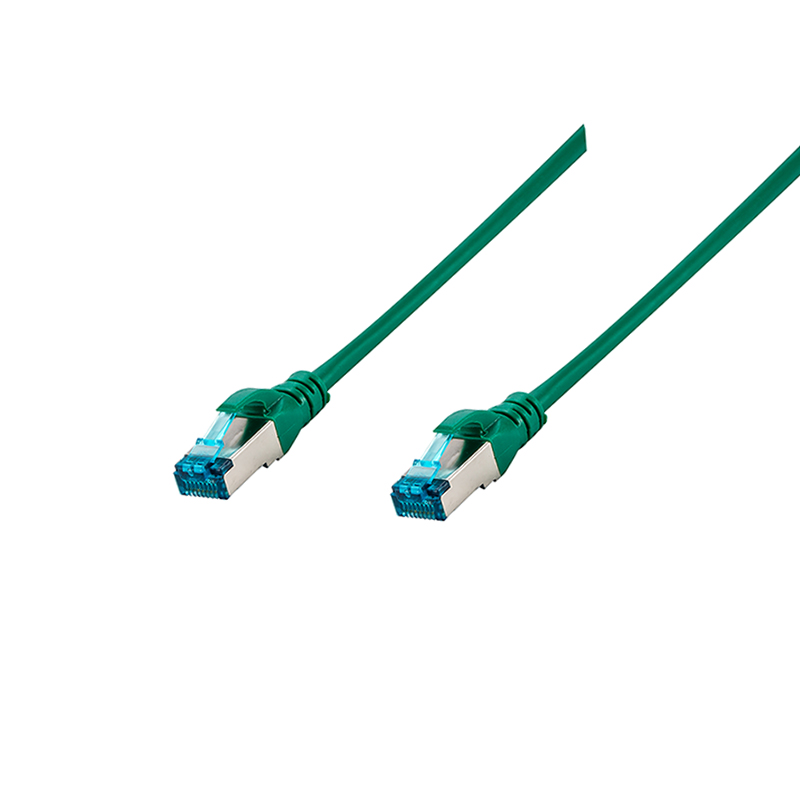

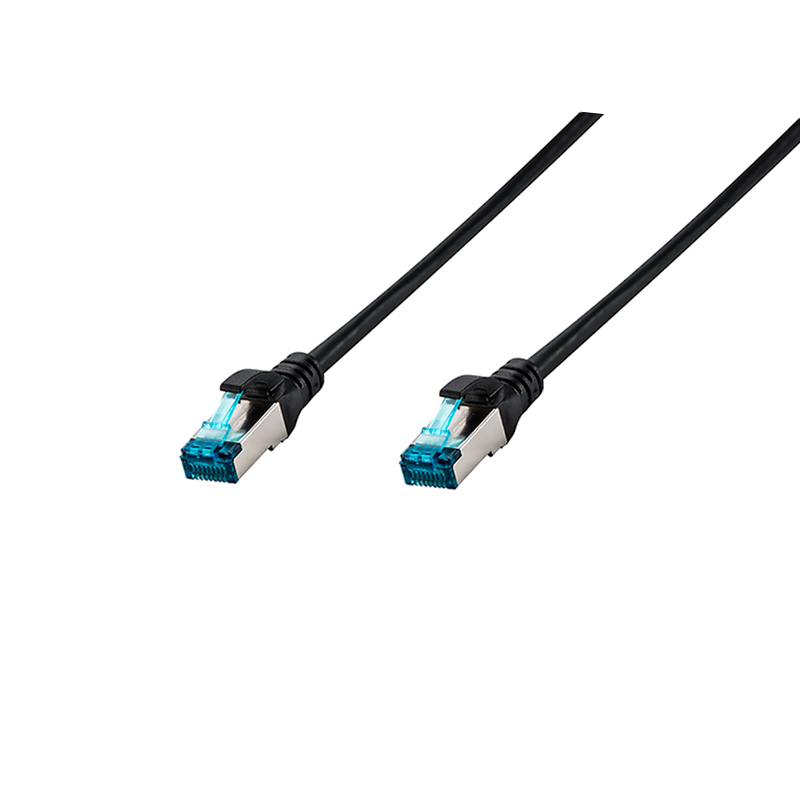

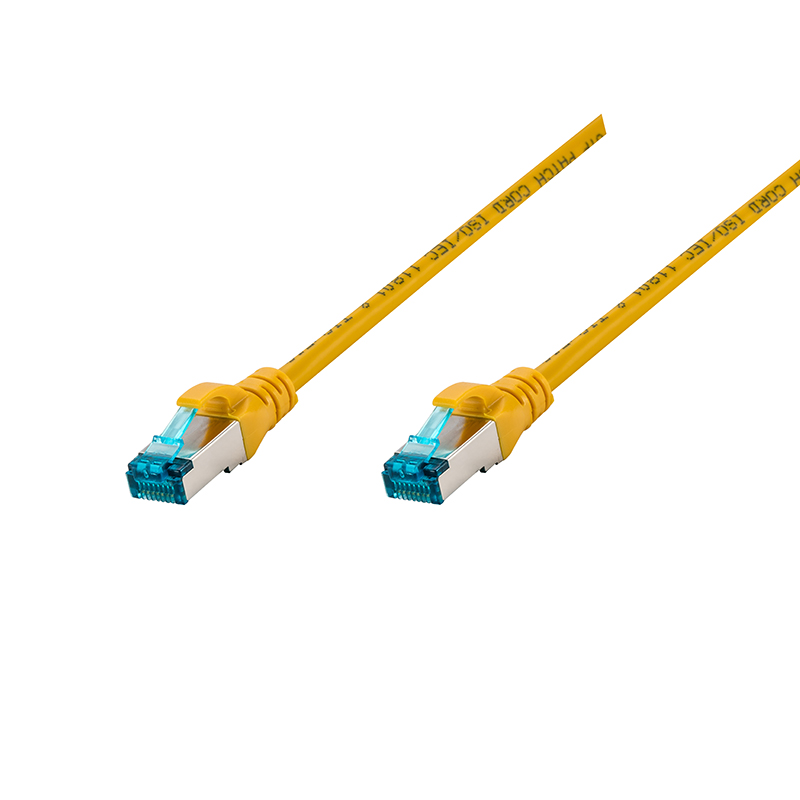

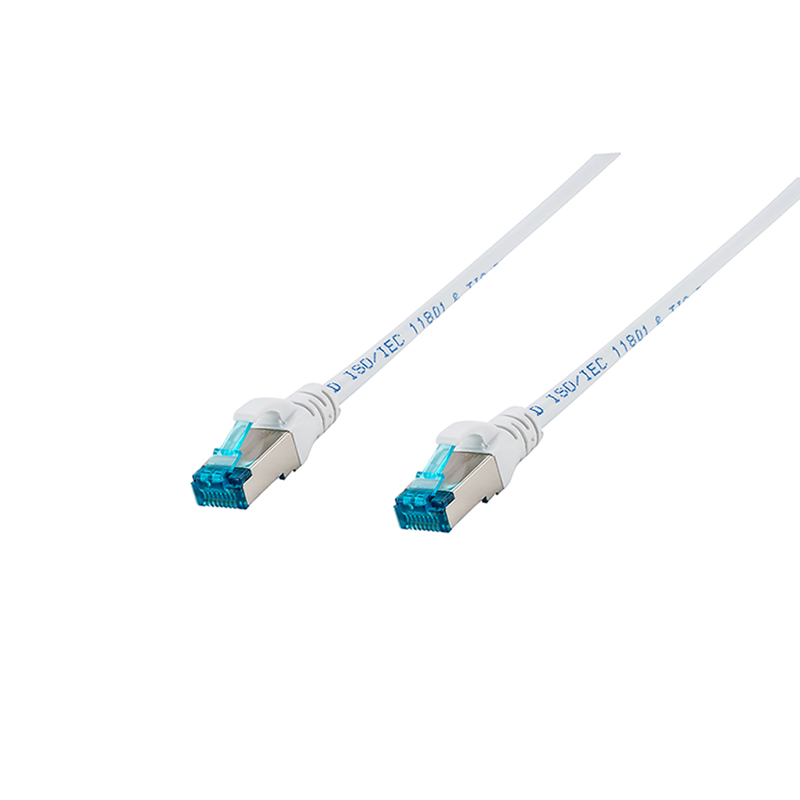

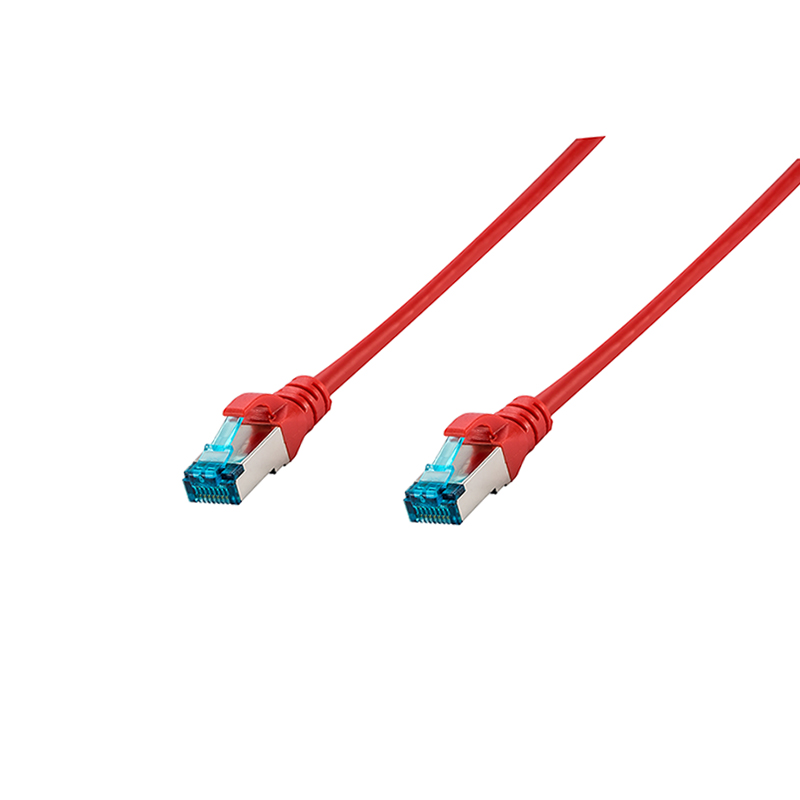

Linkwylan Network RJ45 Patch Cord, CAT 5e F-UTP, AWG26 Stranded Copper, PVC Jacket, Snagless -
$66
1-Year Warranty 30-Day Returns 30-Day Exchange
Product Highlights
The Linkwylan® Category 5e Class D patch cords are produced and tested according to ANSI/TIA-568.2-D, ISO/IEC 11801 and DIN EN 50173 Category 5e specifications. Linkwylan® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. The RJ45 connectors are equipped with injection molding boots with latch protection and strain relief against breaking of the plug clips. The transparent blue RJ45 modular plug not only ensures quick visual identification but also guarantees compatibility with existing Cat 5e infrastructure. Designed for durability, the cable supports frequencies up to 100 MHz and delivers 1000Mbps reliable performance for Ethernet networks. Its twisted-pair construction minimizes crosstalk and interference, making it ideal for high-speed data transmission in both home and office environments.The cables are constructed with bare copper conductors for superior signal clarity and reduced resistance, ensuring optimal power delivery for Power over Ethernet (PoE) applications.
Descriptions
Category
Cat 5e Class D
Transmission up to 1000Mbps 100MHz
Performance

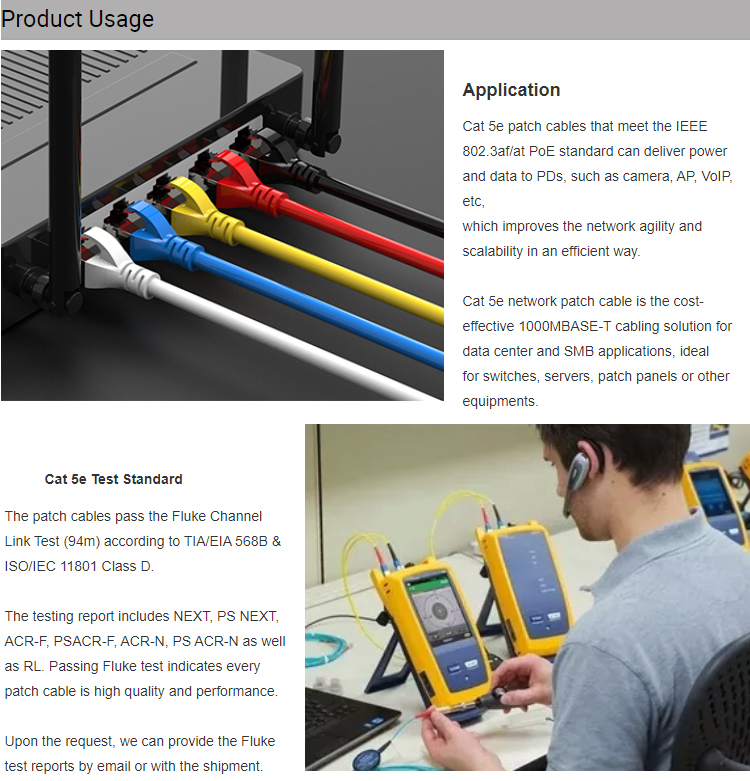

Fluke test according to: 90-94m TIA Cat 5e Channel, ISO 11801 Class D Channel
Structure
Construction: F-UTP (AL-Foil overall shielded)
Number of Pairs: 4x Twist Pairs
Conductor
Stranded Bare Copper AWG 26/7
Insulation
Material: HD PE
Diameter: 0.9~1.0mm
Color: White Orange/Orange, White Blue/Blue, White Green/Green, White Brown/Brown
Shield
Individual shield: None
Overall shield: AL-Mylar Foil
Drain wire: Bare copper
Outer Jacket
Material: PVC
Overall dimension: 5.4±0.3mm

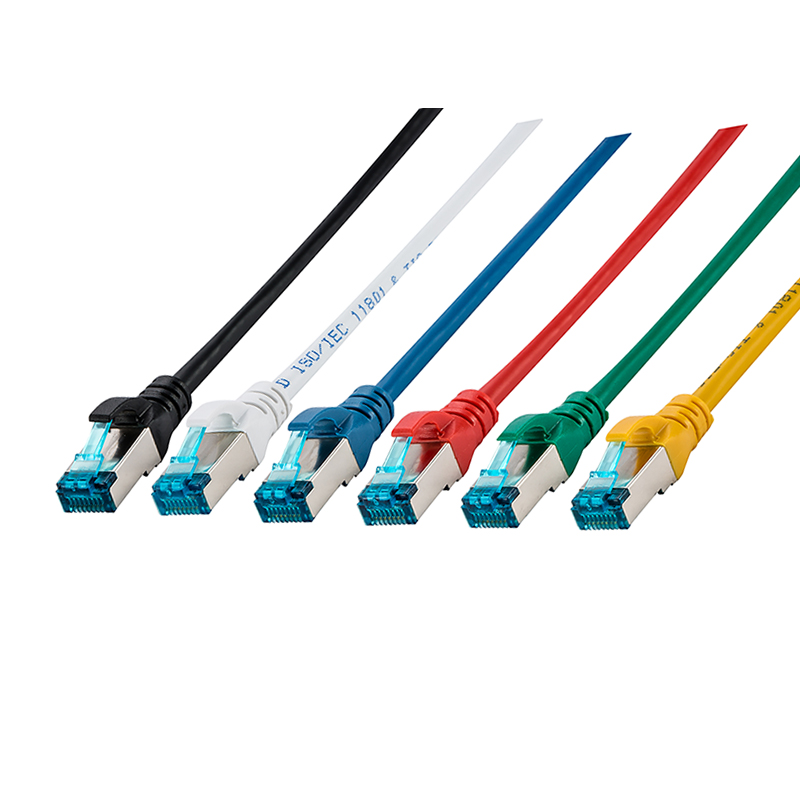

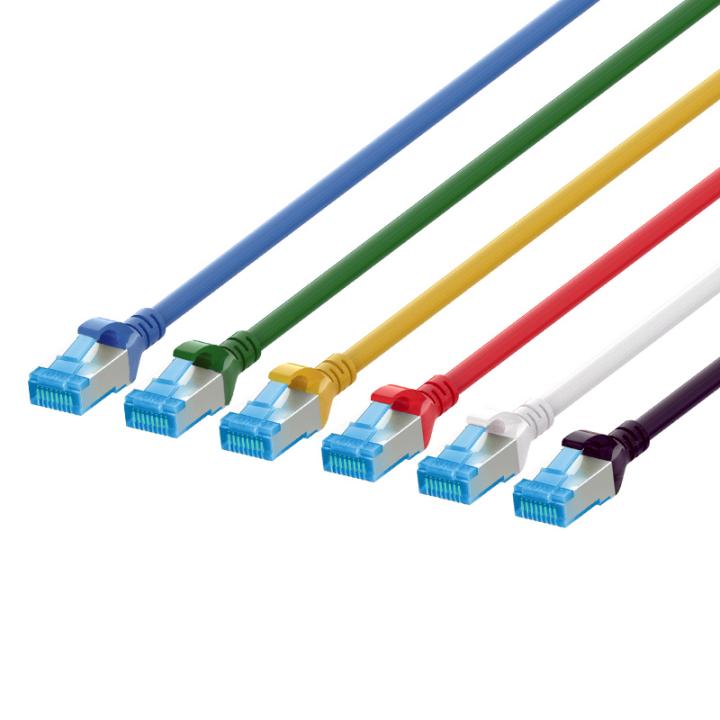

Jacket color: BK/WH/BL/RD/GN/YL
Cable length: 0.25/0.5/1/1.5/2/3/5/7/10/15/20/30m..or customized
Connectors
Type: RJ45 8P8C modular plug
Plastic: PC, transparent-blue color
Shield: Metal sheet shielded with nickel plating
Contacts: Phosphor bronze with gold-plated
Pin assignment: 1:1
Wiring standard: EIA/TIA 568B to 568B
Application/Standards
Application: IEEE 802.3af 10/100/1000 BASE-T
Norms: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-3
RoHS /REACH compliant
Features
Mechanical/Electrical Characteristics
Operating temperature: -20 ℃ ~ +60 ℃
Bend radius (install): 8 x O.D nominal
Insertion force with jack: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Matting cycles with jack: 750 cycles min. (IEC 11801, IEC 60603-7-5)
Contact resistance: 30 Mega-Ohm max.
Resistance unbalance: 5% max.
Dielectric strength: 2500V DC for 3 seconds
Non-insulated resistance: 150 Mega-Ohm/km min.
