Linkwylan CAT 7 Installation Cable S/FTP AWG23 10G 6000MHz LSZH Dca Orange -

The Linkwylan Cat 7 S/FTP installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-12-1, DIN EN 50173, IEC 60332-3-24. The cable is ideal for the transmission of analog and digital data and supports PoE/PoE+/PoE++/4PPoE 100W. The shield structure consists of individually shielded pairs with AL-foil and overall shielded with tinned copper braid, which ensures excellent shielding and electrical values.

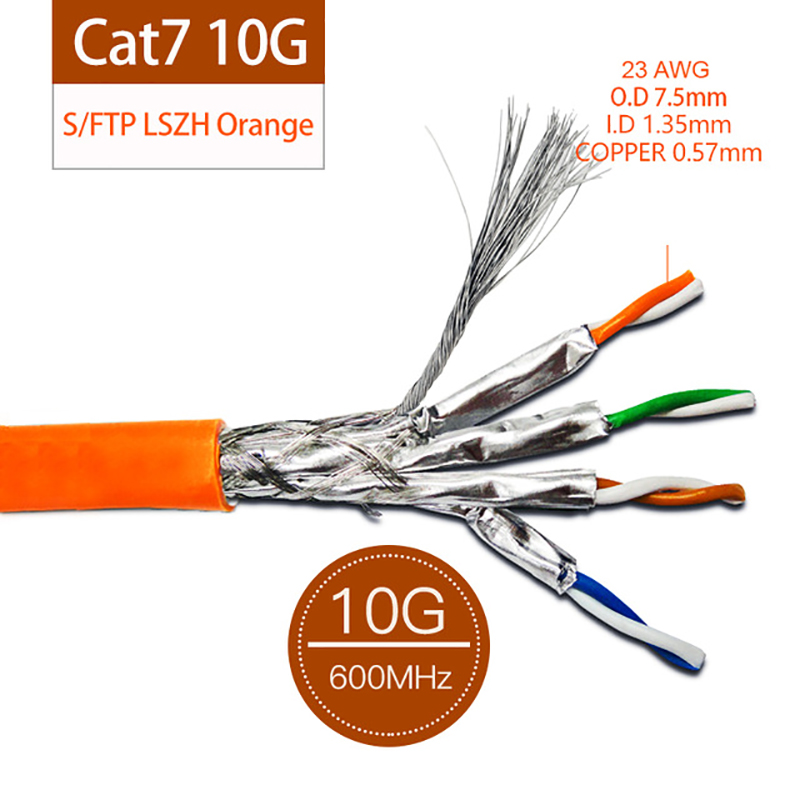

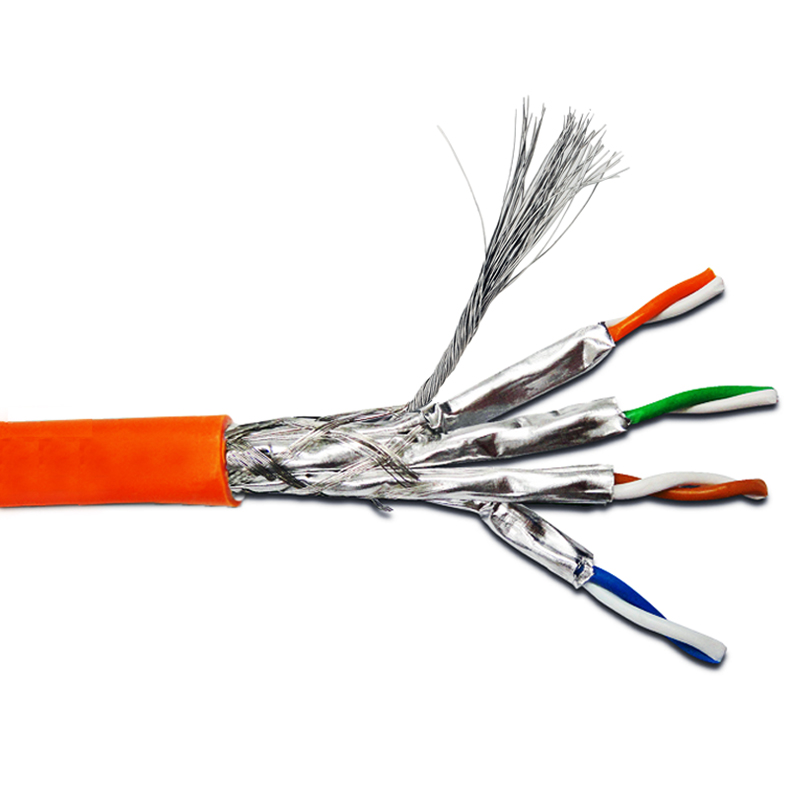

Structure
Construction: S/FTP
Number of Pairs: 4 Pairs

Conductor
AWG: 23AWG
Material: Solid bare copper
Dimension: 0.56±0.01 mm

Insulation
Material: Foam PE
Dimension: 1.35 ±0.05mm
Number colour: White & Blue, White & Orange, White & Green, White & Brown

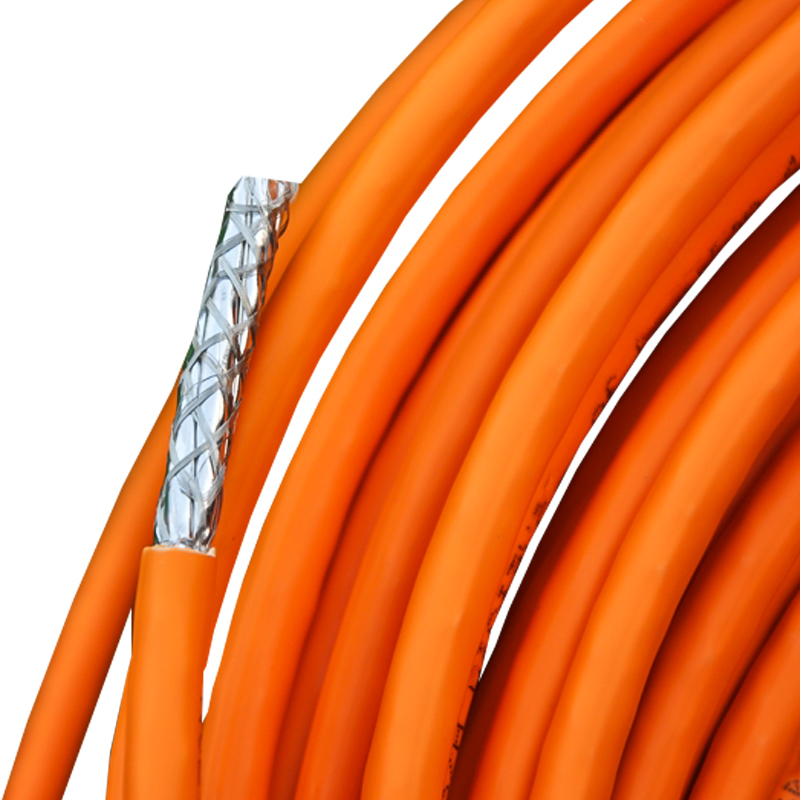

Shield
Individual shield: AL-Foil
Primary overall shield: Tinned copper wire braid
Shield coverage approx: 40%

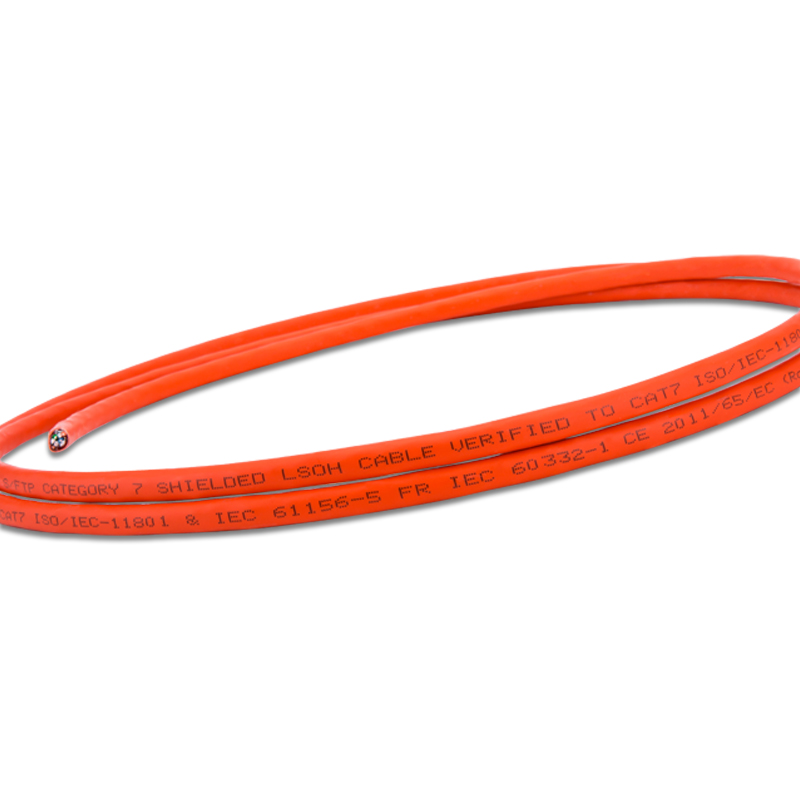

Outer Jacket
Material: LSZH
Thickness: 0.50mm nominal

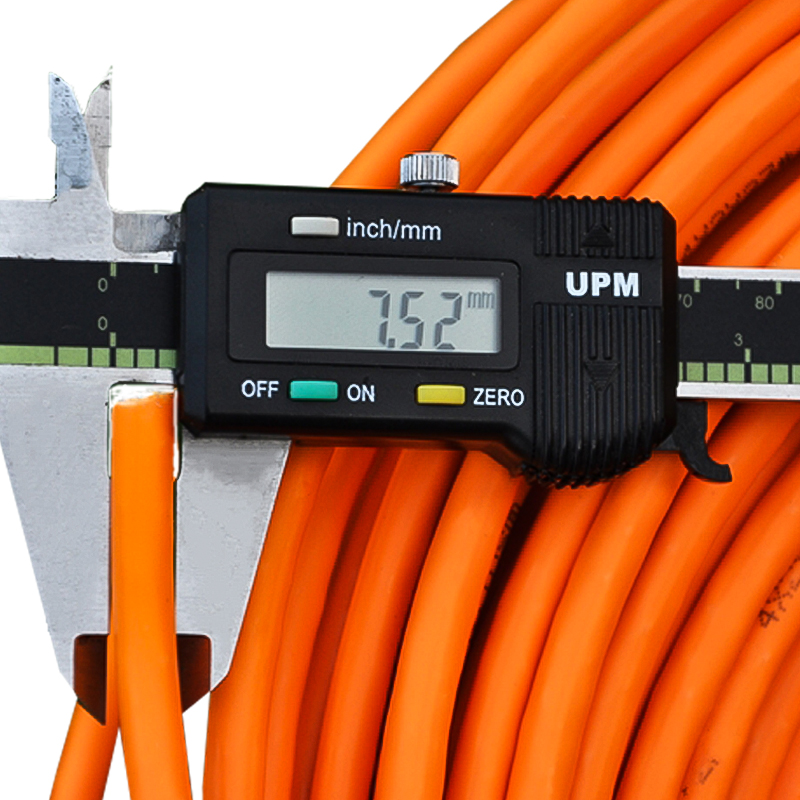

Overall dimension: 7.20 ±0.30 mm nominal
Jacket color: Orange or customized

Mechanical Characteristics
Operating temperature: -20 ℃ ~ +75 ℃
Recommended pulling tension: 110N max.
Bend radius (install): 8 x O.D. min.
Outer jacket tensile strength: ≧9.0MPa
Outer jacket elongation: ≧100%
Outer jacket aging condition: 100 ℃ x 168 hrs
Tensile strength after aging: ≧70% of Non-aging
Elongation after aging: ≧50% of Non-aging
Cold bend (static): No Crack (@ -20℃ x 4hrs)

Electrical Characteristics
Nominal mutual capacitance: ≦4.5 nF/100m (@1kHz) REF.
Pair to ground capacitance unbalance: ≦1600 pF/100m
Nominal velocity of propagation: 79%
Max. delay skew: 25 ns/100m
Conductor DC resistance: 2.4 Ω/30m (@ 20 ℃) max.
Conductor resistance unbalance: 4% (@ 20 ℃) max. within a pair
Min. insulation resistance: 5GΩ.km
Max. operating voltage: UL – 300 V
Dielectric strength: 2.5 KV d.c. for 2s (conductor/conductor, conductor/screen or 1KV d.c. for 1 min)
