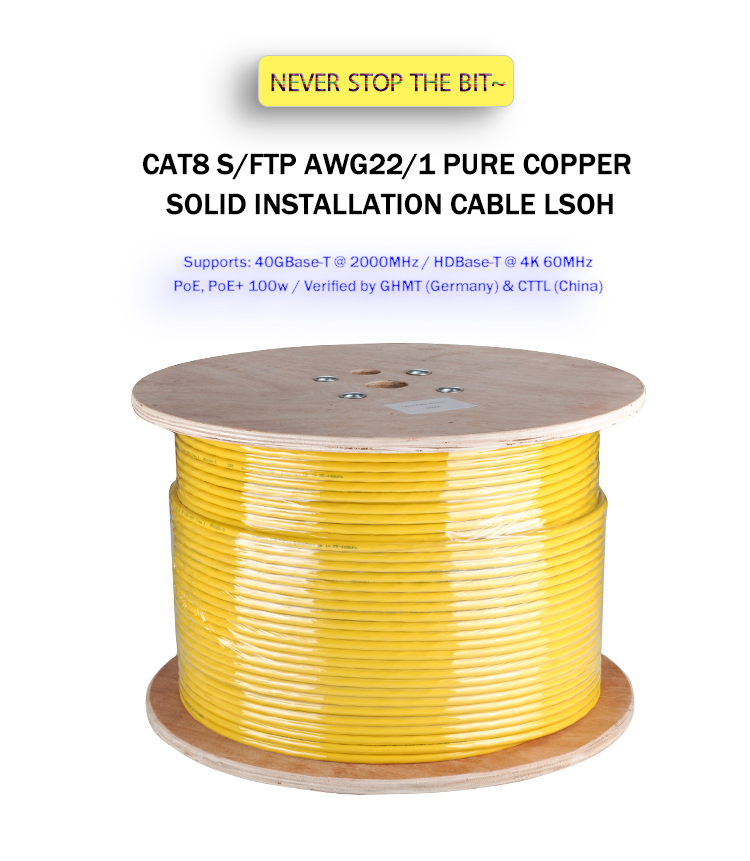

Linkwylan CAT 8 Installation Cable S/FTP AWG22 40G 2000MHz LSZH Dca Yellow -

The Linkwylan Cat 8 S/FTP installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-12-1, DIN EN 50173, IEC 60332-3-24. The cable is ideal for the transmission of analog and digital data and supports POE. The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Structure

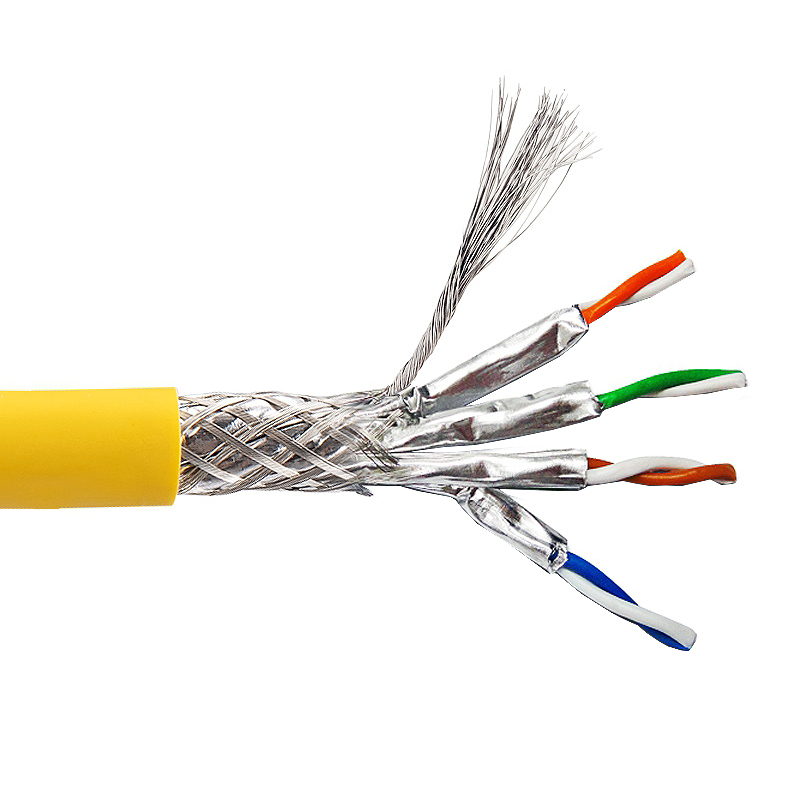

Construction: S/FTP
Number of Pairs: 4 Pairs

Conductor
AWG: 22AWG
Material: Solid bare copper

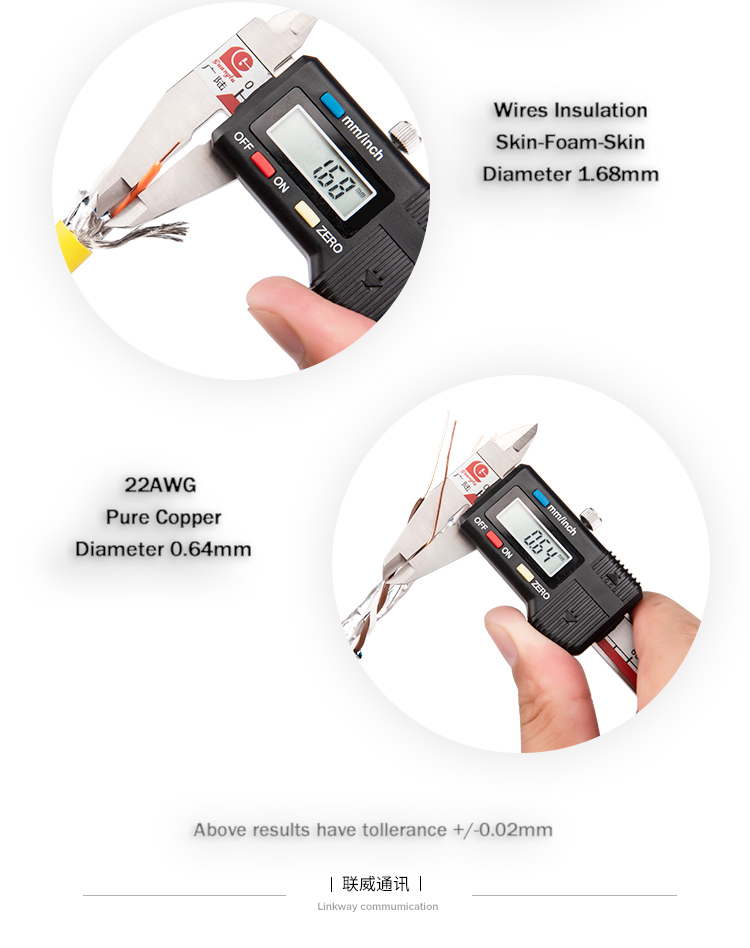

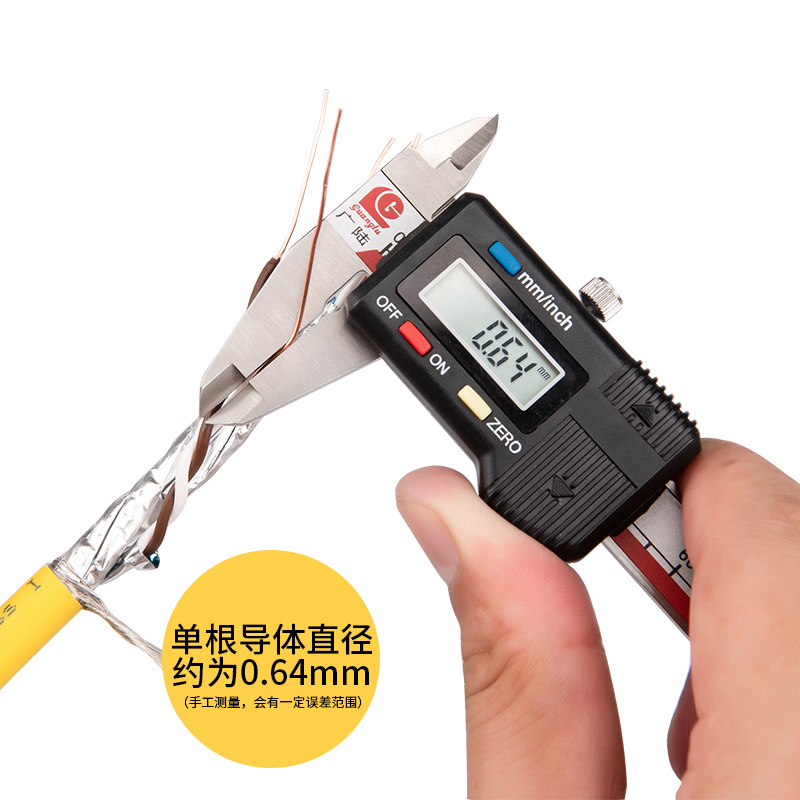

Dimension: 0.63±0.01 mm

Insulation
Material: Foam PE
Dimension: 1.58 ±0.05mm
Number colour: White/Blue & Blue, White/Orange & Orange, White/Green& Green, White/Brown & Brown

Cabling
Twisting lay length: ≦30mm
Cabling lay length: ≦200mm

Shield
Individual shield: AL-Foil

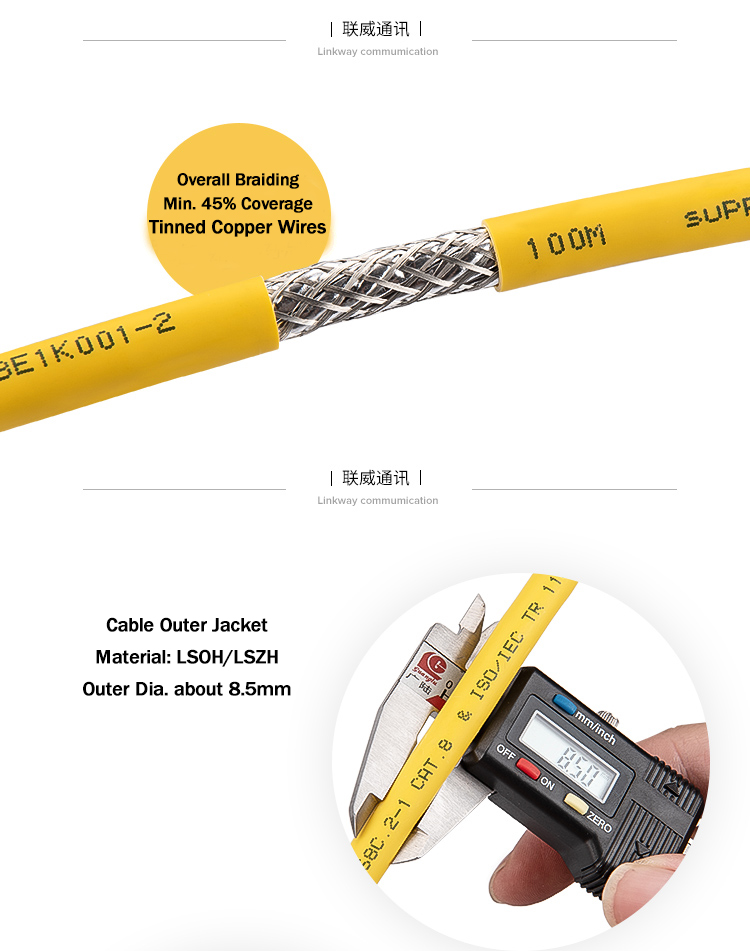

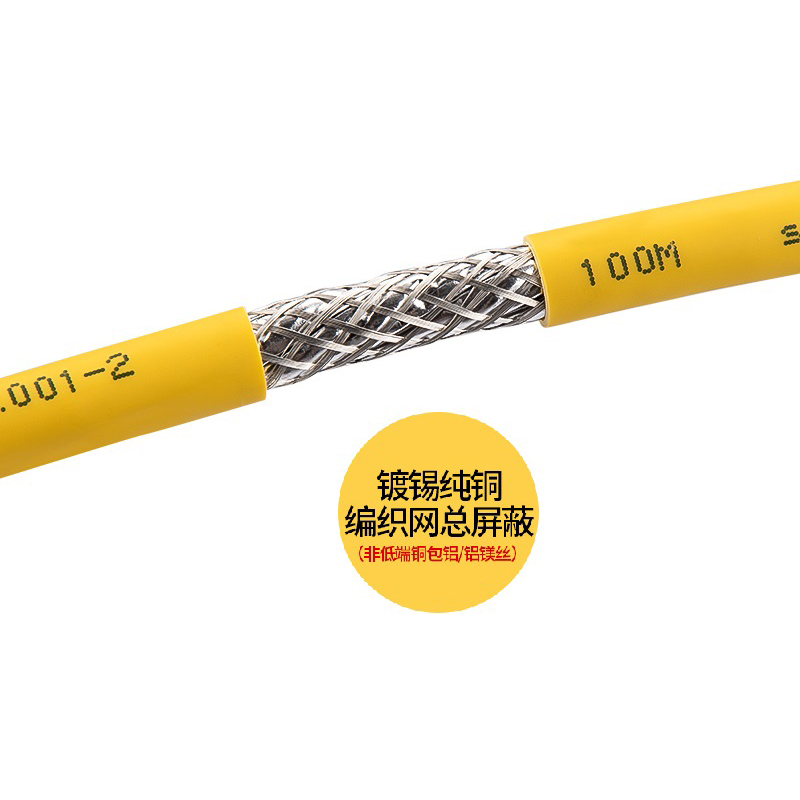

Primary overall shield: Tinned copper wire braid
Shield coverage approx: 40%

Outer Jacket
Material: LSZH
Thickness: 0.70mm nominal

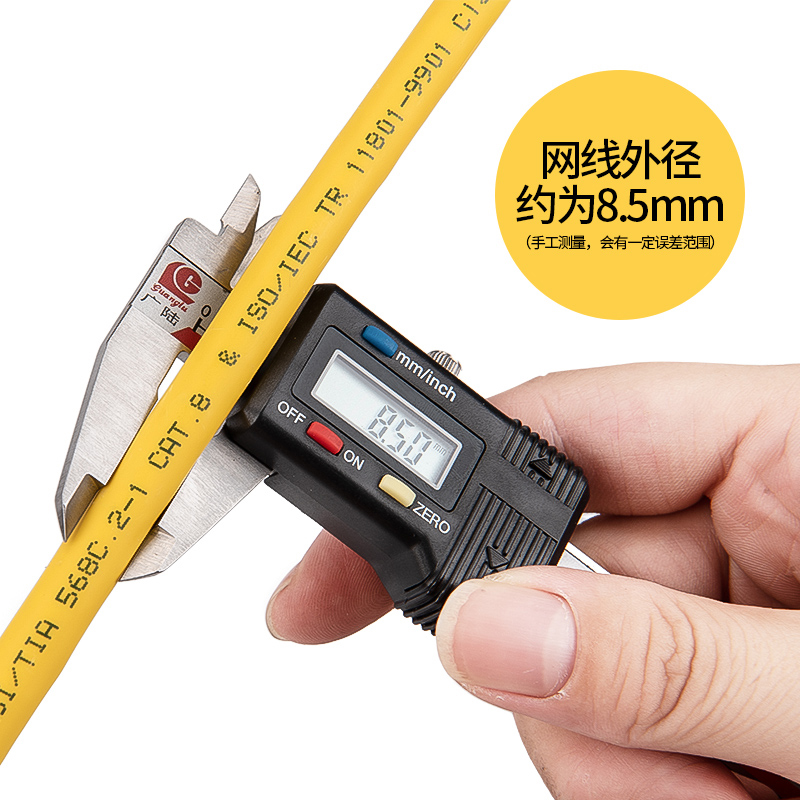

Overall dimension: 8.40 ±0.30 mm nominal
Jacket color: Yellow or customized

Mechanical Characteristics
Operating temperature: -20 ℃ ~ +75 ℃
Recommended pulling tension: 110N max.
Bend radius (install): 8 x O.D. min.
Outer jacket tensile strength: ≧9.0MPa
Outer jacket elongation: ≧100%
Outer jacket aging condition: 100 ℃ x 168 hrs
Tensile strength after aging: ≧70% of Non-aging
Elongation after aging: ≧50% of Non-aging
Cold bend (static): No Crack (@ -20℃ x 4hrs)

Electrical Characteristics
Nominal mutual capacitance: ≦5.6 nF/100m (@1kHz) REF.
Pair to ground capacitance unbalance: ≦1200 pF/100m
Nominal velocity of propagation: 74%
Max. delay skew: 25 ns/100m
Conductor DC resistance: 2.4 Ω/30m (@ 20 ℃) max.
Conductor resistance unbalance: 4% (@ 20 ℃) max. within a pair
Min. insulation resistance: 5GΩ.km
Max. operating voltage: UL – 300 V
Dielectric strength: 2.5 KV d.c. for 2s (conductor/conductor, conductor/screen or 1KV d.c. for 1 min)
