Linkwylan CAT6A/ CAT7/ CAT8 Pre-Terminated Cable S-FTP LSZH/TPE, Customized Length Available -

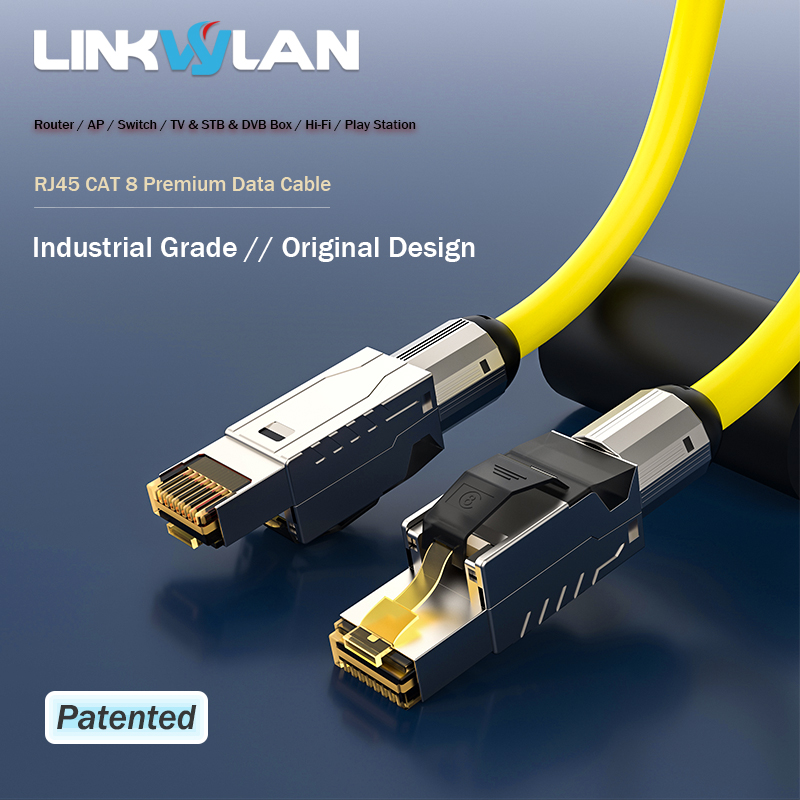

Linkwylan pre-terminated cable is the unique design for connecting the RJ45 devices.

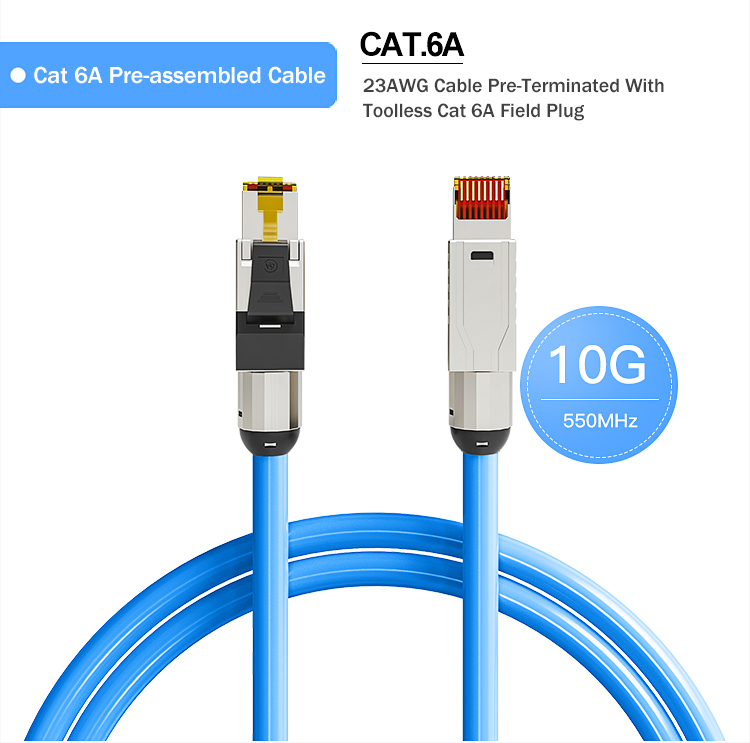

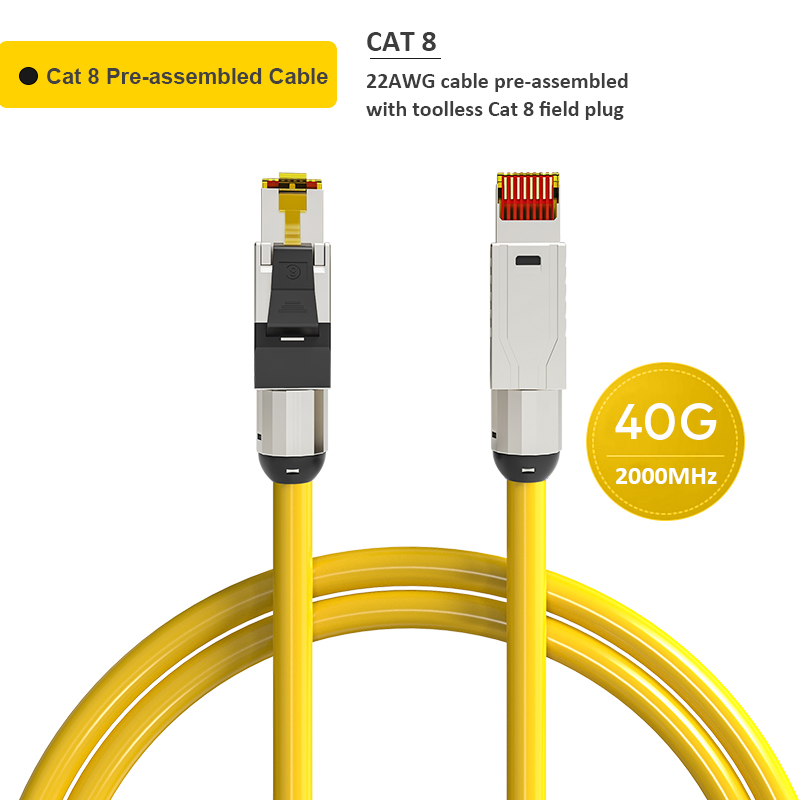

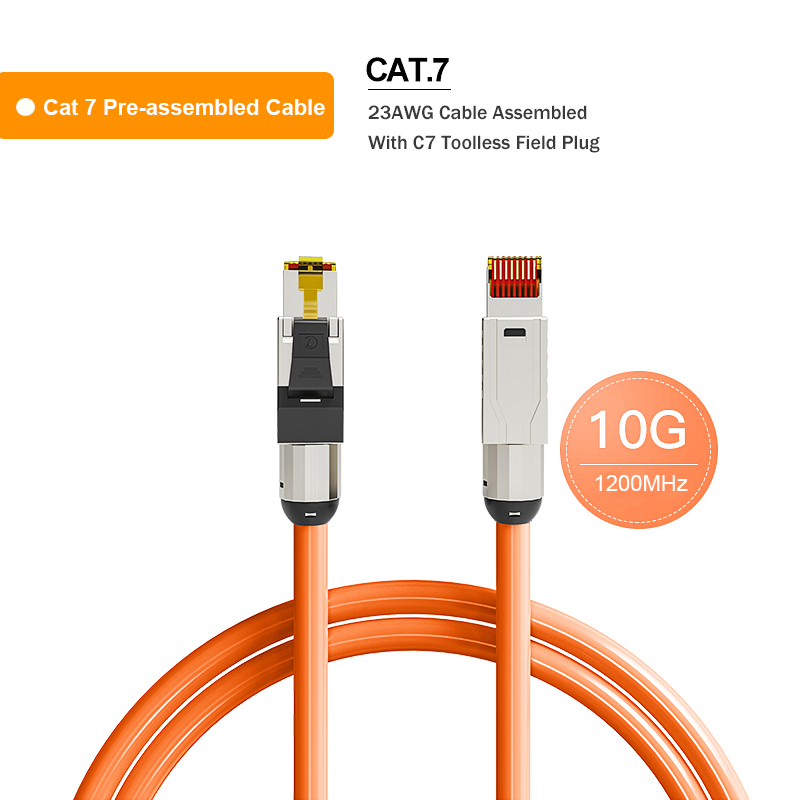

It uses the solid S/FTP cable CAT6A/CAT7/CAT8 4x2xAWG22 and RJ45 field termination plugs

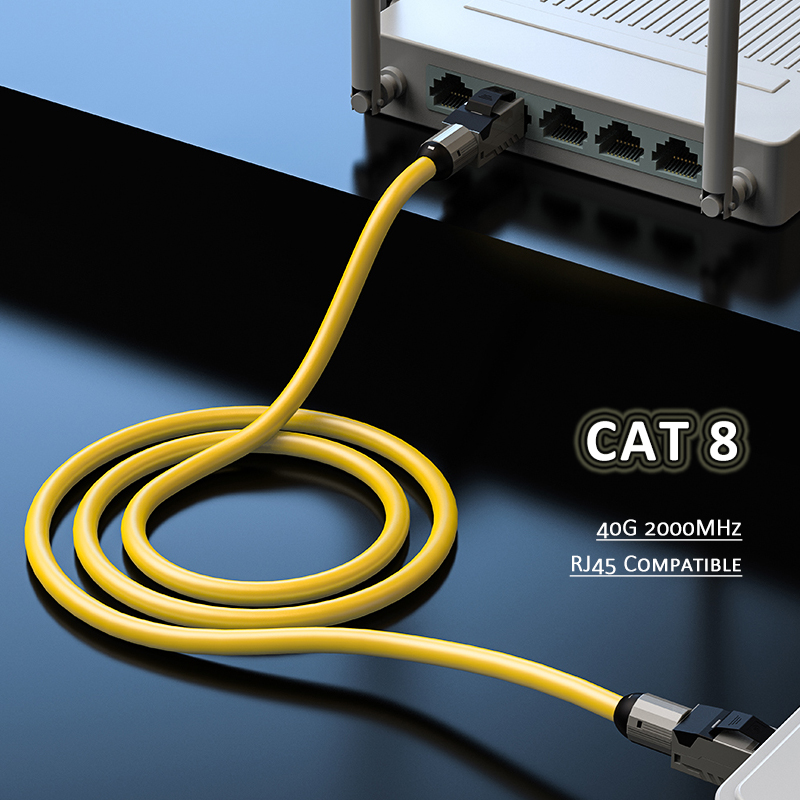

10G/40G 2000MHz with PCB built-in plus 50u gold-plated on the plug’s contact pins to catch up with the best performance. The cable achieves transmit band with 40GBit and frequency up to 2000MHz (30m channel link). The halogen-free material complies with the standards IEC60332-3-24.

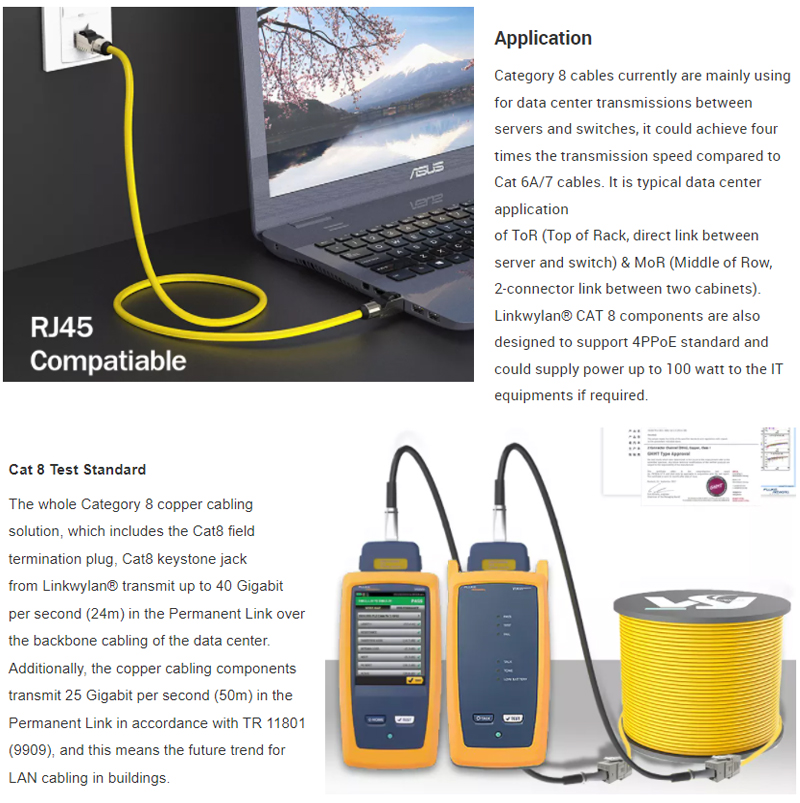

The cable is not only popular for data center and IT&networking room application, it is also suitable for the hi-speed internet bar, game center, home HDBase 4K TV box and hi-fi studioes. It complies with the standards ANSI/EIA/TIA-568-C.2-1, ISO/IEC11801, EN50173, EN50288.

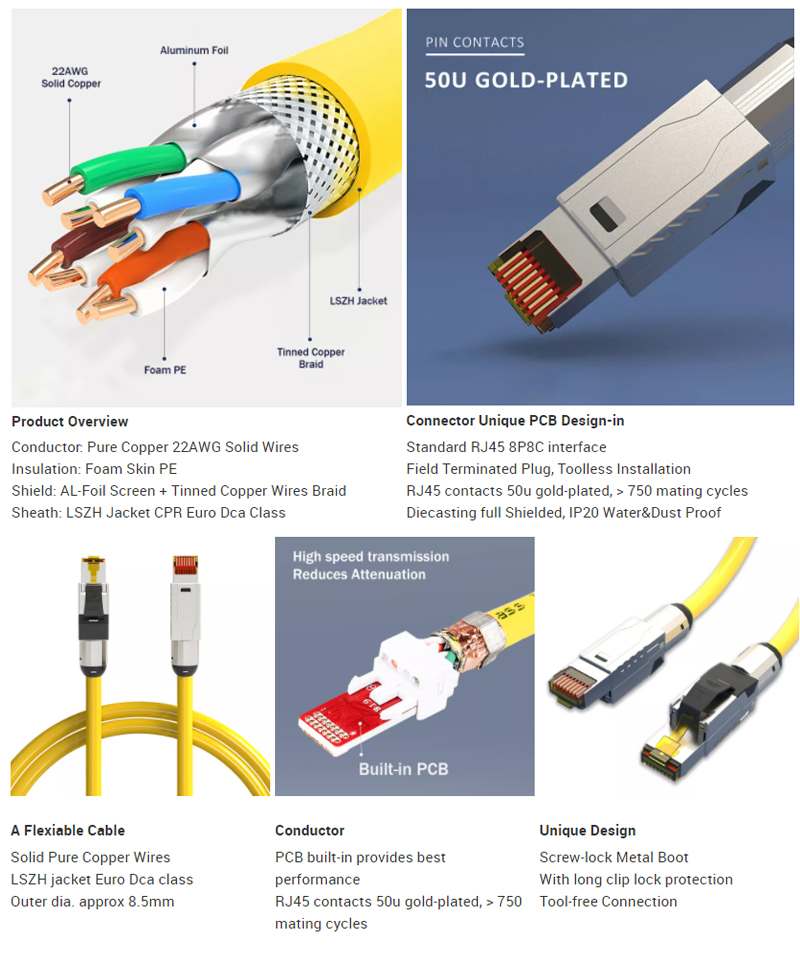

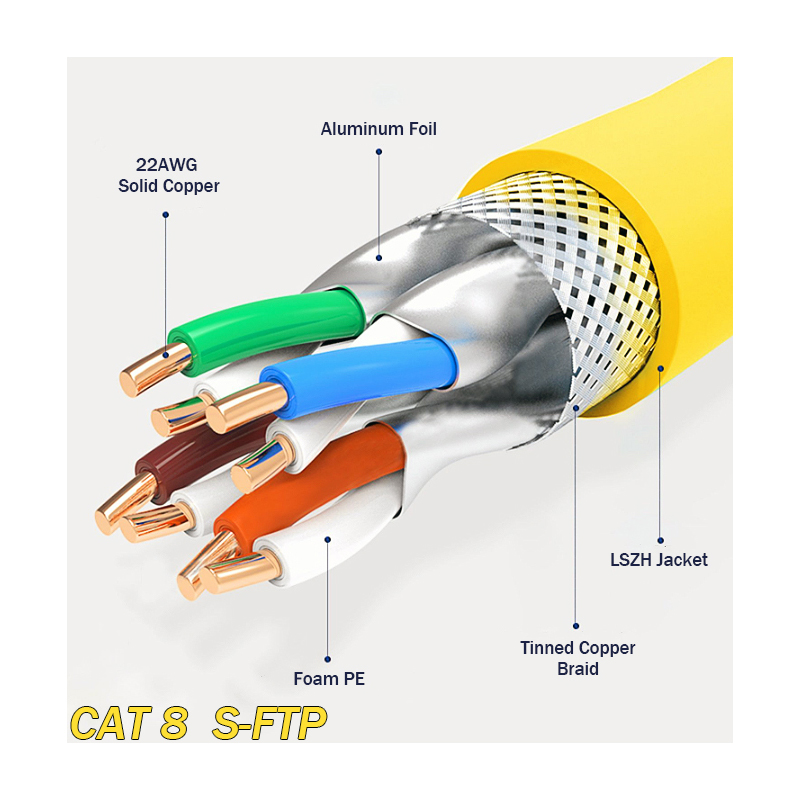

Structure

Construction: S/FTP

Number of Pairs: 4 Pairs

Conductor

AWG: Cat 6A & Cat 7 23AWG, Cat 8 22AWG

Material: Solid bare copper

Dimension: 23AWG 0.56mm, 22AWG 0.63mm

Insulation

Material: Foam PE

Dimension: 1.35~1.58mm

Number colour: White/Blue, White/Orange, White/Green, White/Brown

Shield

Individual shield: AL-Foil

Primary overall shield: Tinned copper wire braid

Shield coverage approx: 40%

Outer Jacket

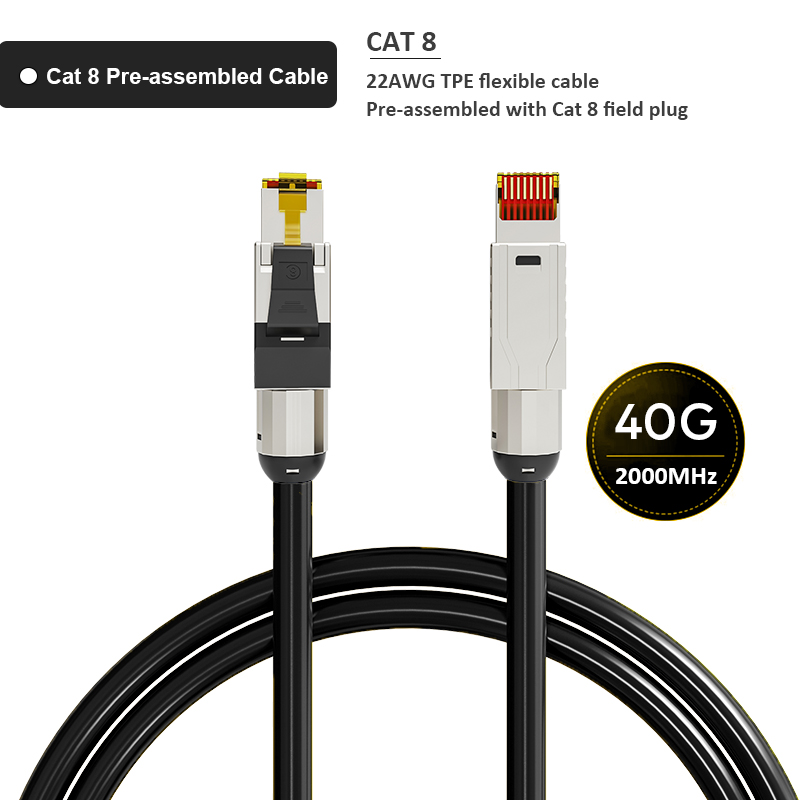

Material: LSZH/TPE

Thickness: 0.50~0.70mm

Overall dimension: 7.3~8.40mm

Jacket color: Blue/Orange/Yellow/Black

Connectors

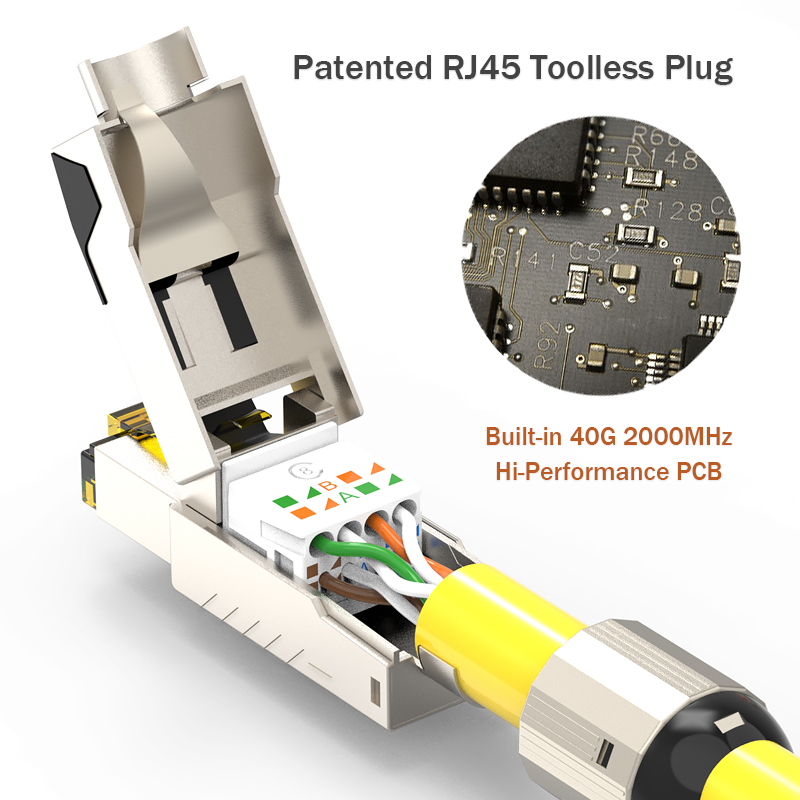

Type: RJ45 field termination plugs built-in PCB

Body: Zinc-alloy full shielded

Contacts: 8P8C phosphor bronze with 50u gold-plated

Termination: Tool-free connection

Industrial protection grade: IP20

Standards Compliance

ANSI/TIA-568.2-D, ANSI/TIA-1096-A (formerly FCC Part 68)

ISO/IEC 11801-1, Class Ea/F/I, IEC 60603-7-1

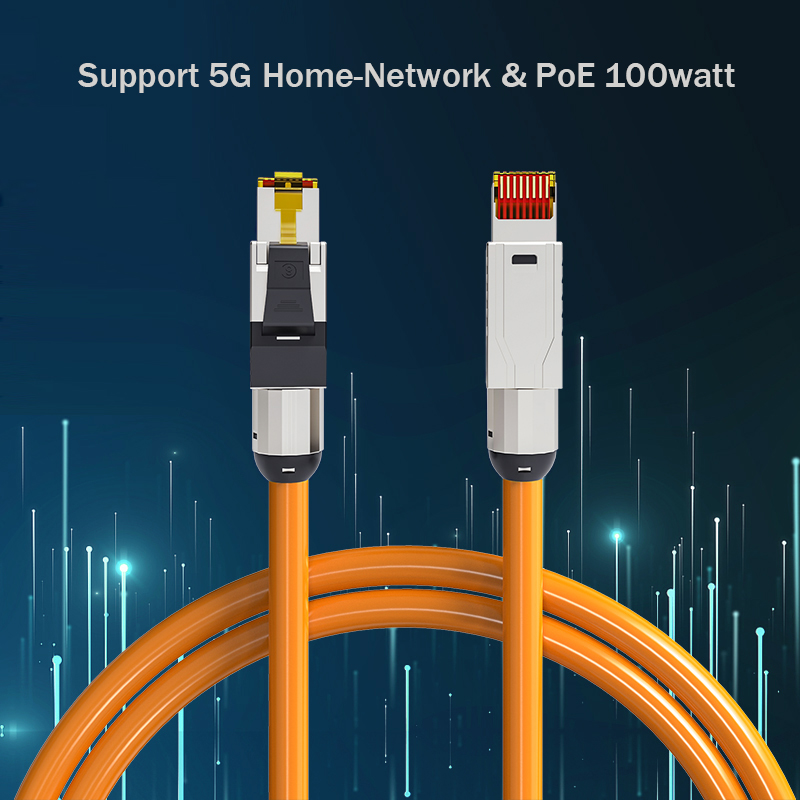

IEEE 802.3bt type 4 PoE++(4PPoE) 100W

IEC 61034-2 Smoke (for LSZH material only)

IEC 60754-2 Halogen/Acid (for LSZH material only)

RoHS /REACH compliant

Mechanical Characteristics

Operating temperature: -20 ℃ ~ +75 ℃

Recommended pulling tension: 110N max.

Bend radius (install): 8 x O.D. min.

Outer jacket tensile strength: ≧9.0MPa

Outer jacket elongation: ≧100%

Outer jacket aging condition: 100 ℃ x 168 hrs

Tensile strength after aging: ≧70% of Non-aging

Elongation after aging: ≧50% of Non-aging

Cold bend (static): No Crack (@ -20℃ x 4hrs)
