Linkwylan Network RJ45 Patch Cord, CAT 6A S/FTP, AWG28 Stranded Copper, PVC Jacket, Snagless -

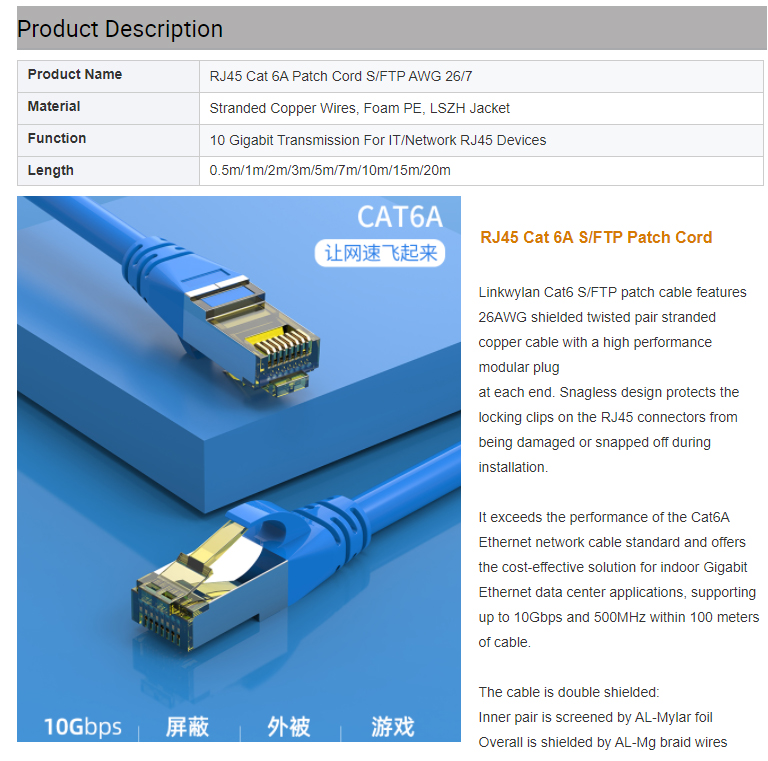

The Linkwylan® Category 6A Class Ea patch cords are produced and tested according to ANSI/TIA-568.2-D, ISO/IEC 11801 and DIN EN 50173 Category 6A 10Gigabit specifications. Linkwylan® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. The RJ45 connectors are equipped with injection molding boots with latch protection and strain relief against breaking of the plug clips. The transparent yellow RJ45 modular plug not only ensures quick visual identification but also guarantees compatibility with existing Cat 6a infrastructure. Designed for durability, the cable supports frequencies up to 500 MHz and delivers 10Gbps reliable performance for Ethernet networks. Its twisted-pair construction minimizes crosstalk and interference, making it ideal for high-speed data transmission in both home and office environments. The cables are constructed with bare copper conductors for superior signal clarity and reduced resistance, ensuring optimal power delivery for Power over Ethernet (PoE/PoE+/PoE++) applications.

Category

Cat 6A Class Ea

Transmission up to 10Gbps 500MHz

Performance

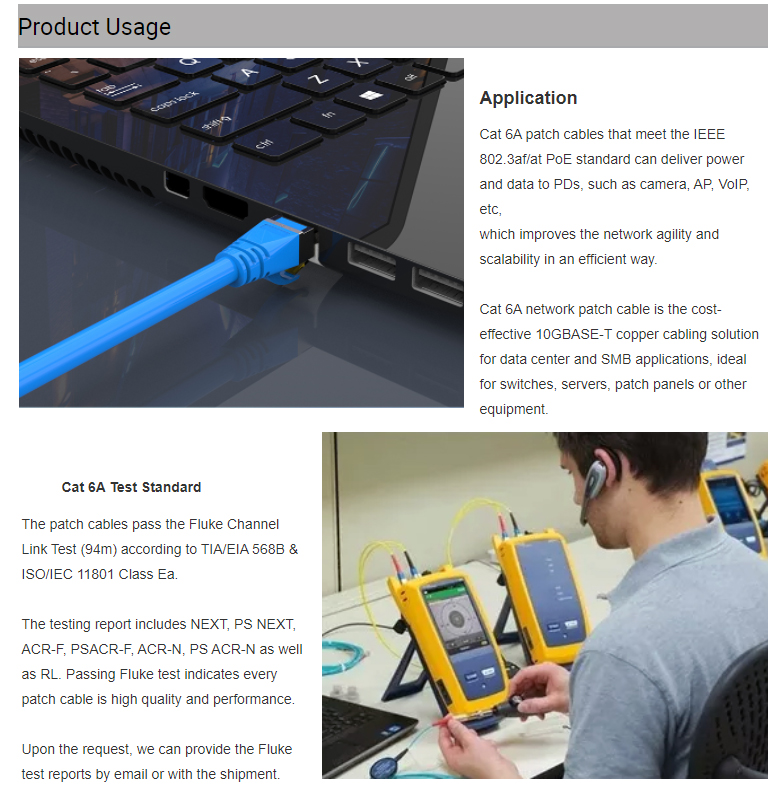

Fluke test according to: 90-94m TIA Cat 6A Channel, ISO 11801 Class Ea Channel

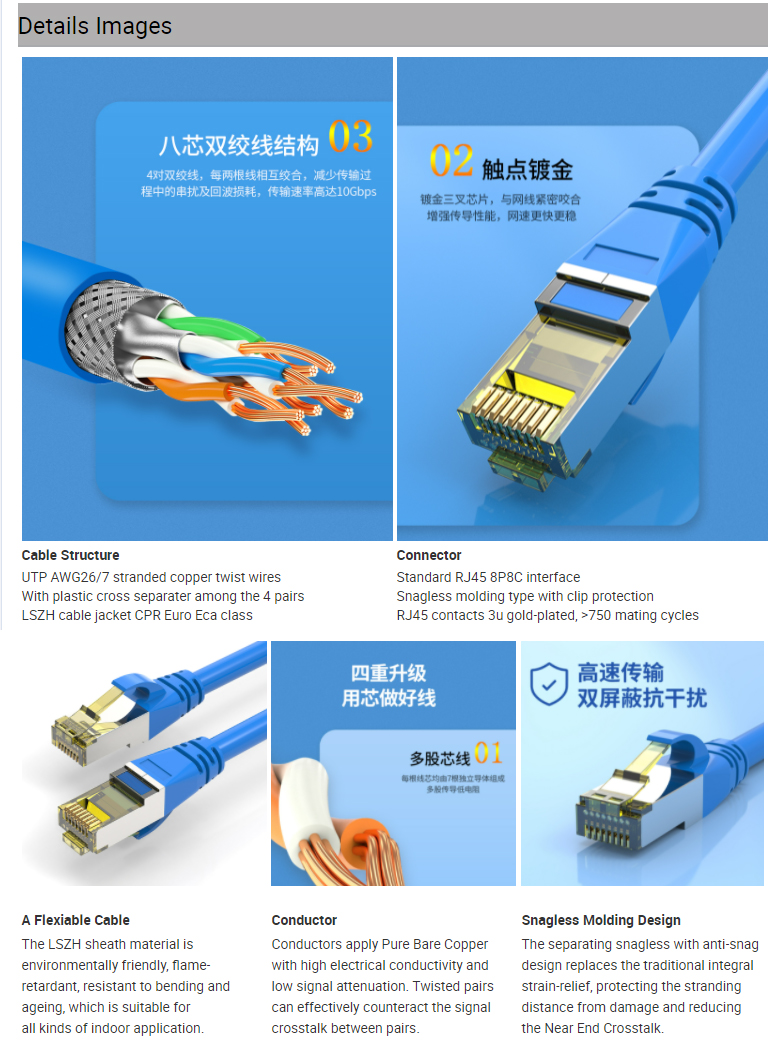

Structure

Construction: S/FTP (AL-Mg Braid overall shielded + individual AL foil screened)

Number of Pairs: 4x Twist Pairs

Conductor

Stranded Bare Copper AWG 28/7

Insulation

Material: HD PE

Diameter: 0.9~1.0mm

Color: White Orange/Orange, White Blue/Blue, White Green/Green, White Brown/Brown

Shield

Individual shield: AL-Mylar foil

Overall shield: AL-Mg braid wires

Drain wire: Bare copper

Outer Jacket

Material: PVC

Overall dimension: 6.3±0.3mm

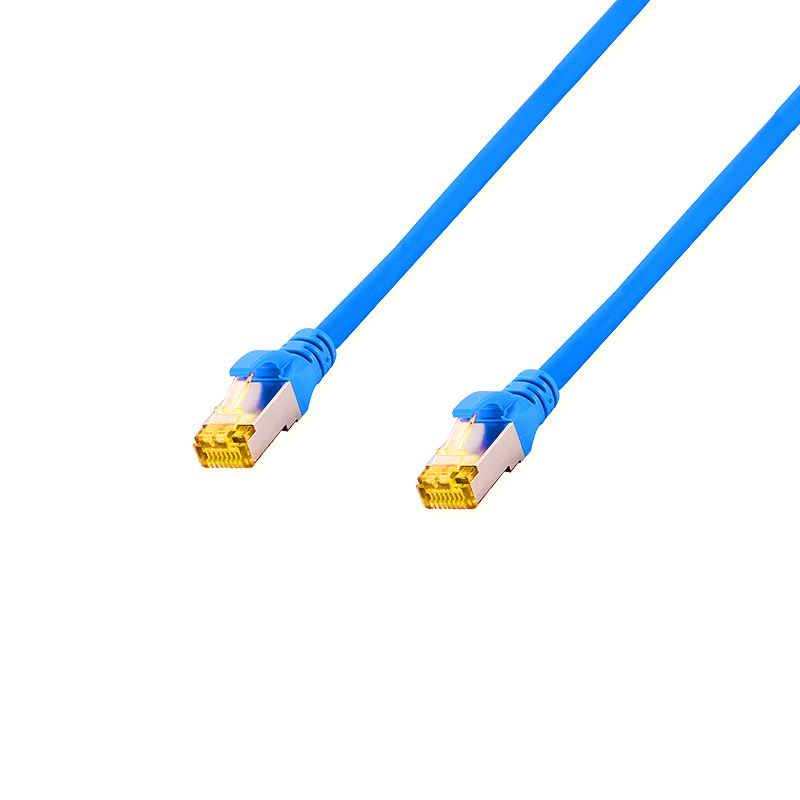

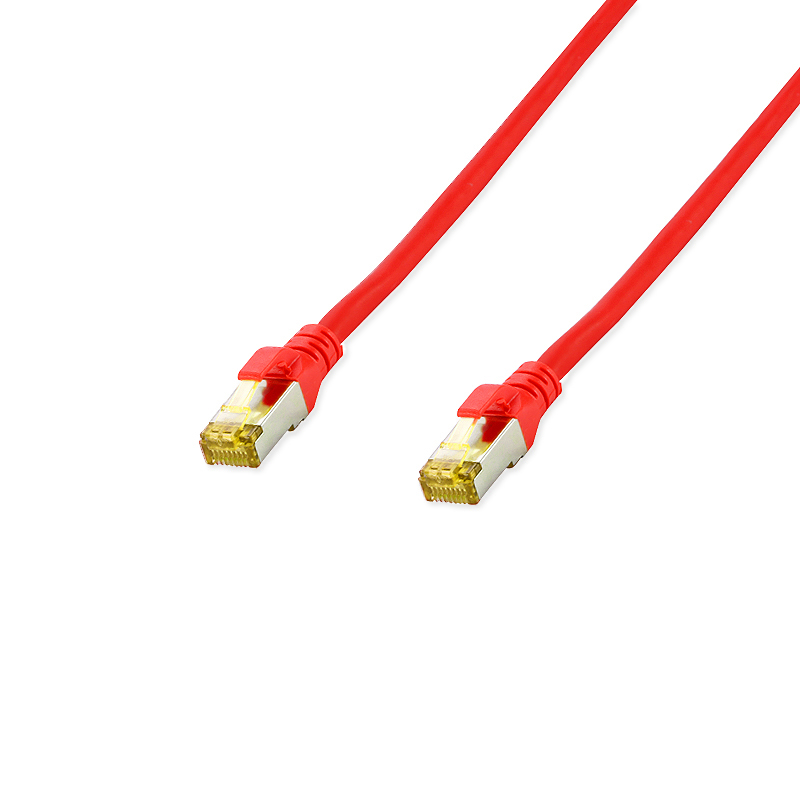

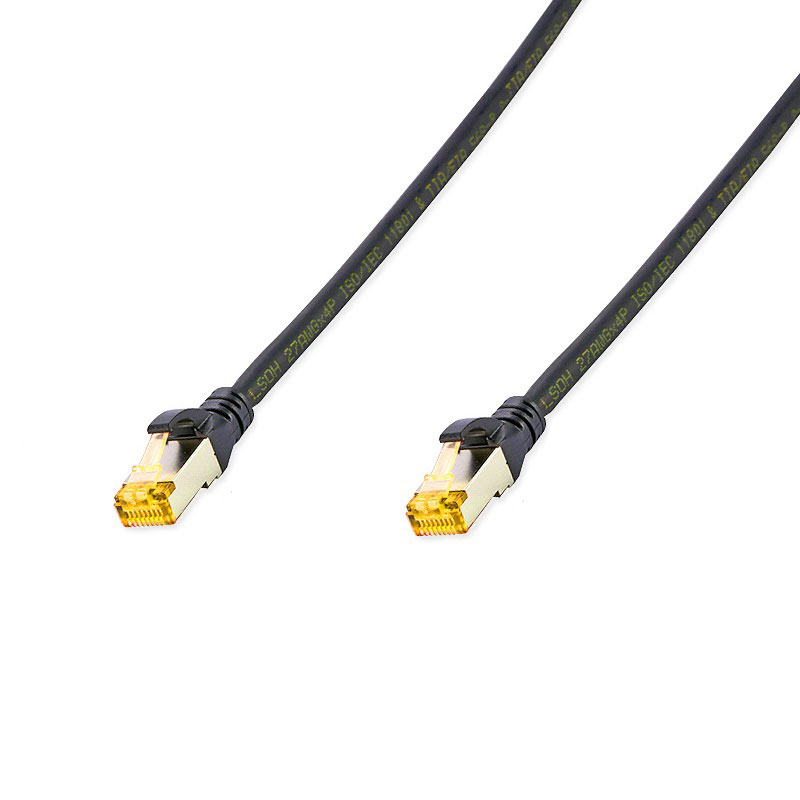

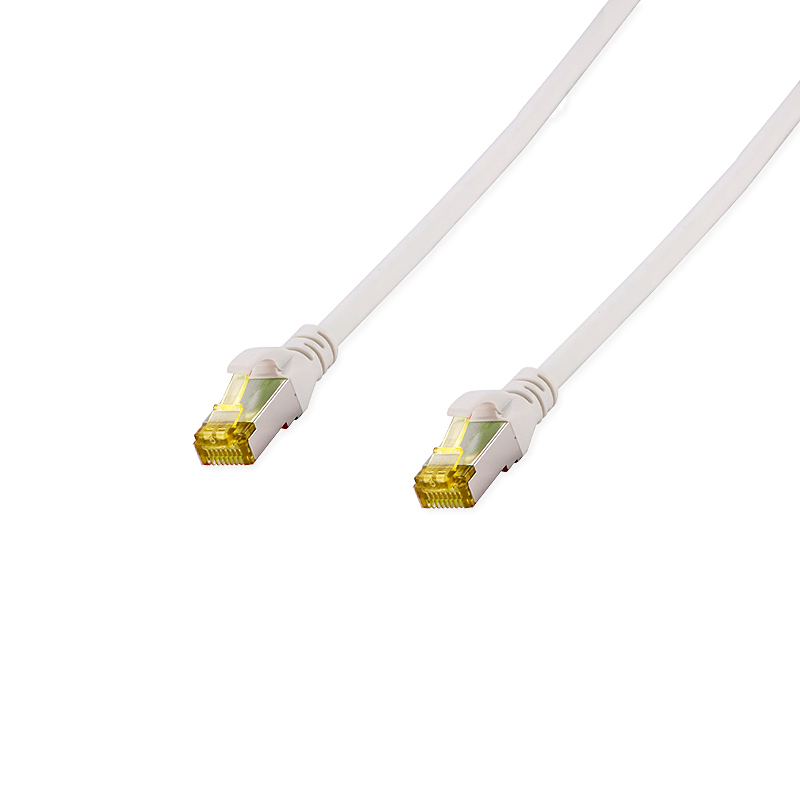

Jacket color: BK/WH/BL/RD/GN/YL

Cable length: 0.25/0.5/1/1.5/2/3/5/7/10/15/20/30m..or customized

Connectors

Type: RJ45 8P8C modular plug

Plastic: PC, transparent-yellow color

Shield: Metal sheet shielded with nickel plating

Contacts: Phosphor bronze with gold-plated

Pin assignment: 1:1

Wiring standard: EIA/TIA 568B to 568B

Application/Standards

Application: IEEE 802.3af/at/bt 10/100/1000/10G BASE-T

Norms: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-3

RoHS /REACH compliant

Mechanical/Electrical Characteristics
Operating temperature: -20 ℃ ~ +60 ℃
Bend radius (install): 8 x O.D nominal
Insertion force with jack: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Matting cycles with jack: 750 cycles min. (IEC 11801, IEC 60603-7-5)
Contact resistance: 30 Mega-Ohm max.
Resistance unbalance: 5% max.
Dielectric strength: 2500V DC for 3 seconds
Non-insulated resistance: 150 Mega-Ohm/km min.
