Linkwylan CAT 5e Shielded FTP Patch Cord AWG 26/7 PVC Snagless Various Of Lengths/Colors -

The Linkwylan® Category 5e Class D patch cords are produced and tested according to ANSI/TIA-568.2-D, ISO/IEC 11801 and DIN EN 50173 Category 5e specifications. Linkwylan® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. The RJ45 connectors are equipped with injection molding boots with latch protection and strain relief against breaking of the plug clips. The transparent blue RJ45 modular plug not only ensures quick visual identification but also guarantees compatibility with existing Cat5e infrastructure. Designed for durability, the cable supports frequencies up to 100 MHz and delivers 1000MBit reliable performance for Ethernet networks. Its twisted-pair construction minimizes crosstalk and interference, making it ideal for high-speed data transmission in both home and office environments.The cables are constructed with bare copper conductors for superior signal clarity and reduced resistance, ensuring optimal power delivery for Power over Ethernet (PoE) applications.

Structure

Construction: F-UTP

Number of Pairs: 4 Pairs

Conductor

AWG: Cat 5e AWG 26/7

Material: Stranded bare copper

Insulation

Material: HD PE

Dimension: 0.9~1.0mm

Number colour: White/Blue, White/Orange, White/Green, White/Brown

Shield

Individual shield: None

Primary overall shield: AL-Mylar Foil

Outer Jacket

Material: PVC

Overall dimension: 5.3±0.3mm

Jacket color: Optional

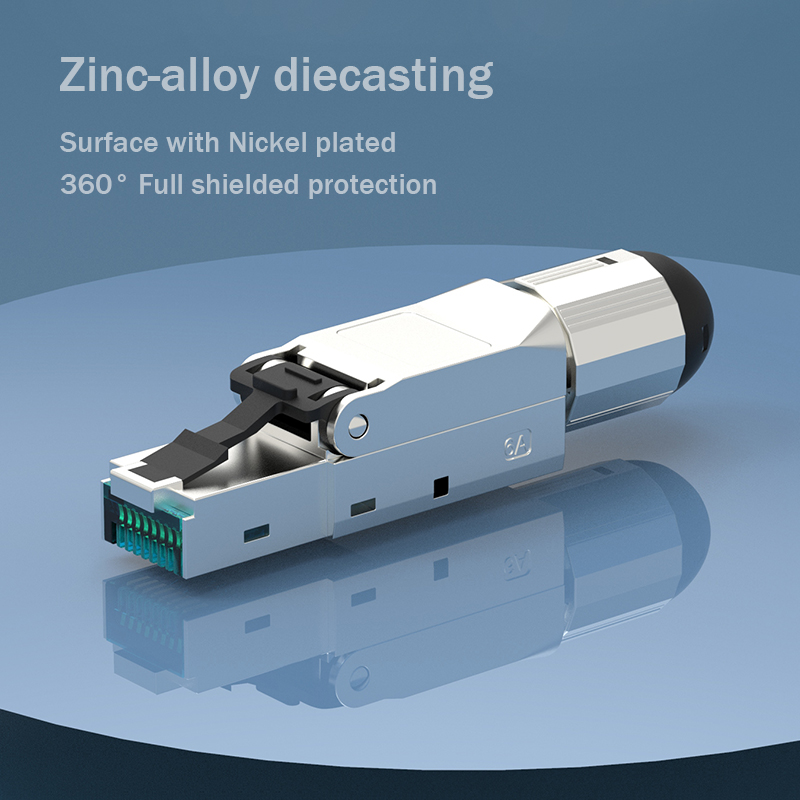

Connectors

Type: RJ45 8P8C modular plug

Shell: Metal sheet shielded

Contacts: 8P8C phosphor bronze with gold-plated

Standards Compliance

ANSI/TIA-568.2-D, ANSI/TIA-1096-A (formerly FCC Part 68)

ISO/IEC 11801-1, Class D, IEC 60603-7-1

RoHS /REACH compliant

Mechanical Characteristics

Operating temperature: -20 ℃ ~ +60 ℃

Bend radius (install): 8 x O.D. min.

Outer jacket tensile strength: ≧9.0MPa

Outer jacket elongation: ≧100%

Outer jacket aging condition: 100 ℃ x 168 hrs

Tensile strength after aging: ≧70% of Non-aging

Elongation after aging: ≧50% of Non-aging

Cold bend (static): No Crack (@ -20℃ x 4hrs)
